Solar Control Low E Insulated Glass

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

125

Structure

Hollow

Color

Blue

Usage

Building

Package

Wooden Case

HS Code

70080010

Capacity

2000sq. Ms Per Day

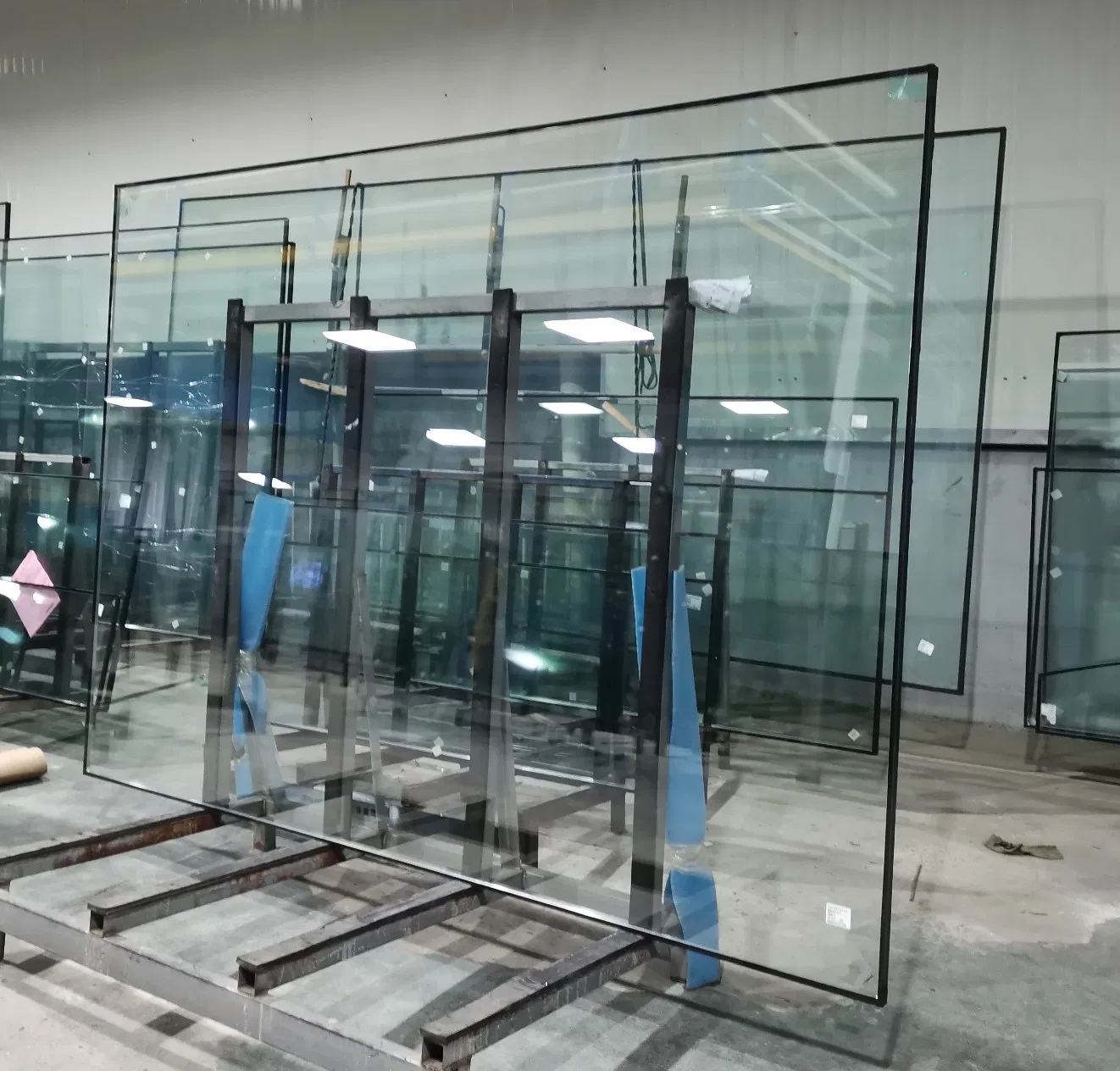

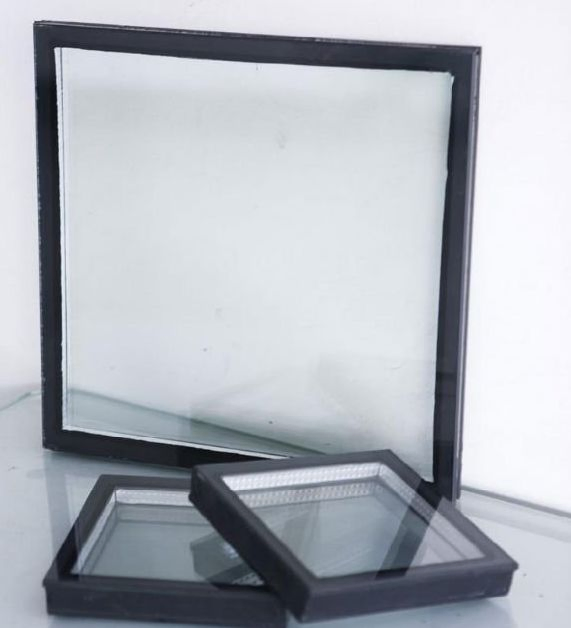

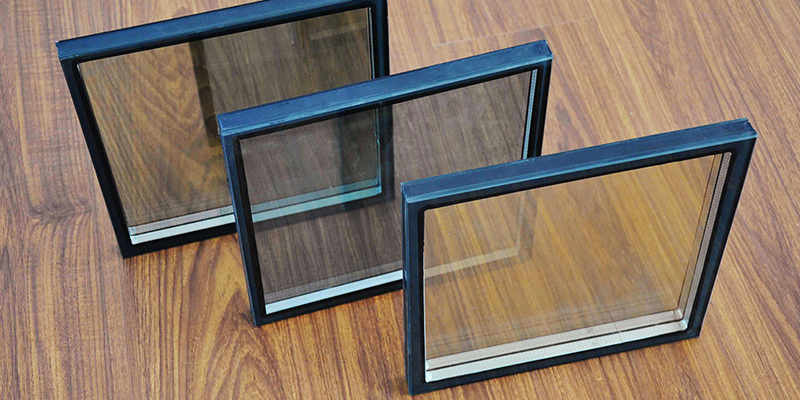

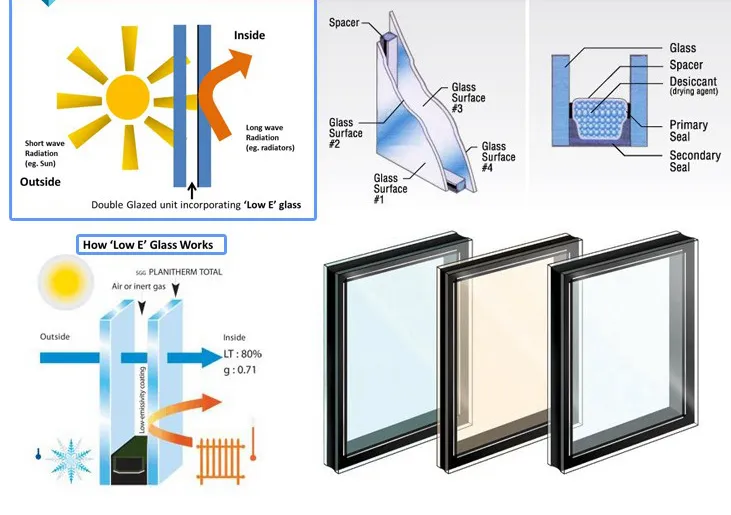

Solar Control Low E Insulated Glass

Manufactured by fusing solar control low E glass and other type glass together, spaced by dry air or argon gas. This advanced glazing solution combines the advantages of both low S.C. and low U value, making it suitable for various climates.

Key Benefits:

Minimize solar heat gain by rejecting solar radiation.
Control glare effectively in buildings with high internal loads.
Balance solar control with high levels of natural light in temperate conditions.
Energy saving solution for modern architectural requirements.

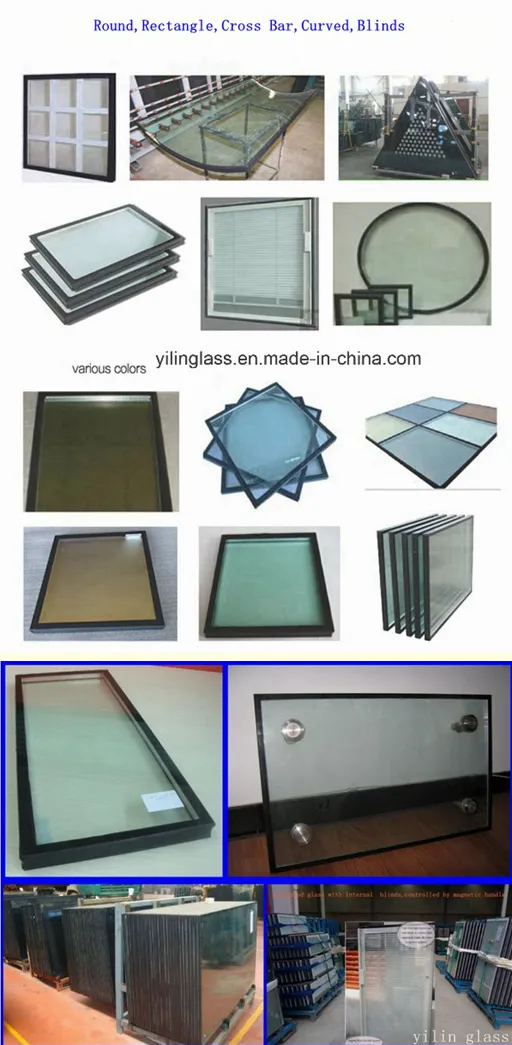

Double Glazing Combinations

Our units can be customized by matching with various glass types:

🎨

Color Tinted & Low Iron Glass

🖼️

Patterned & Normal Float Glass

🛡️

Tempered & Laminated Glass

❄️

Frosted & Color Printed Glass

Technical Parameters

Single Glass Thickness: 3mm to 12mm
Air Spacer Frame: 6mm, 9mm, 12mm, 15mm, 16mm, 19mm, 20mm, 21mm, 25mm
Size Range: Min. 150x150mm to Max. 3000x8000mm
Spacer Type: Aluminum or warm edge spacer, argon gas filled

Core Functions & Properties

Thermal Insulation

Low heat gain and heat loss value (Low U Value).

Light Transmission

Selectable solar reflectance levels to meet functional requirements.

Noise Insulation

Reduces noise by 30-35 dB with inert gas filling.

Leak Proof

Primary and secondary sealants with automatic edge processing.

Manufacturing Advantages

Premium Raw Materials: Top-tier solar control glass, spacers, and sealants (silicone, polysulfide, butyl).
Advanced Cleaning: Utilization of soft water for superior surface cleanliness.
Automated Production: Processes finished by advanced machines and robot arms, including framing, filling, and sealing.
Strict Quality Control: Piece-by-piece inspection before packing for 100% quality guarantee.

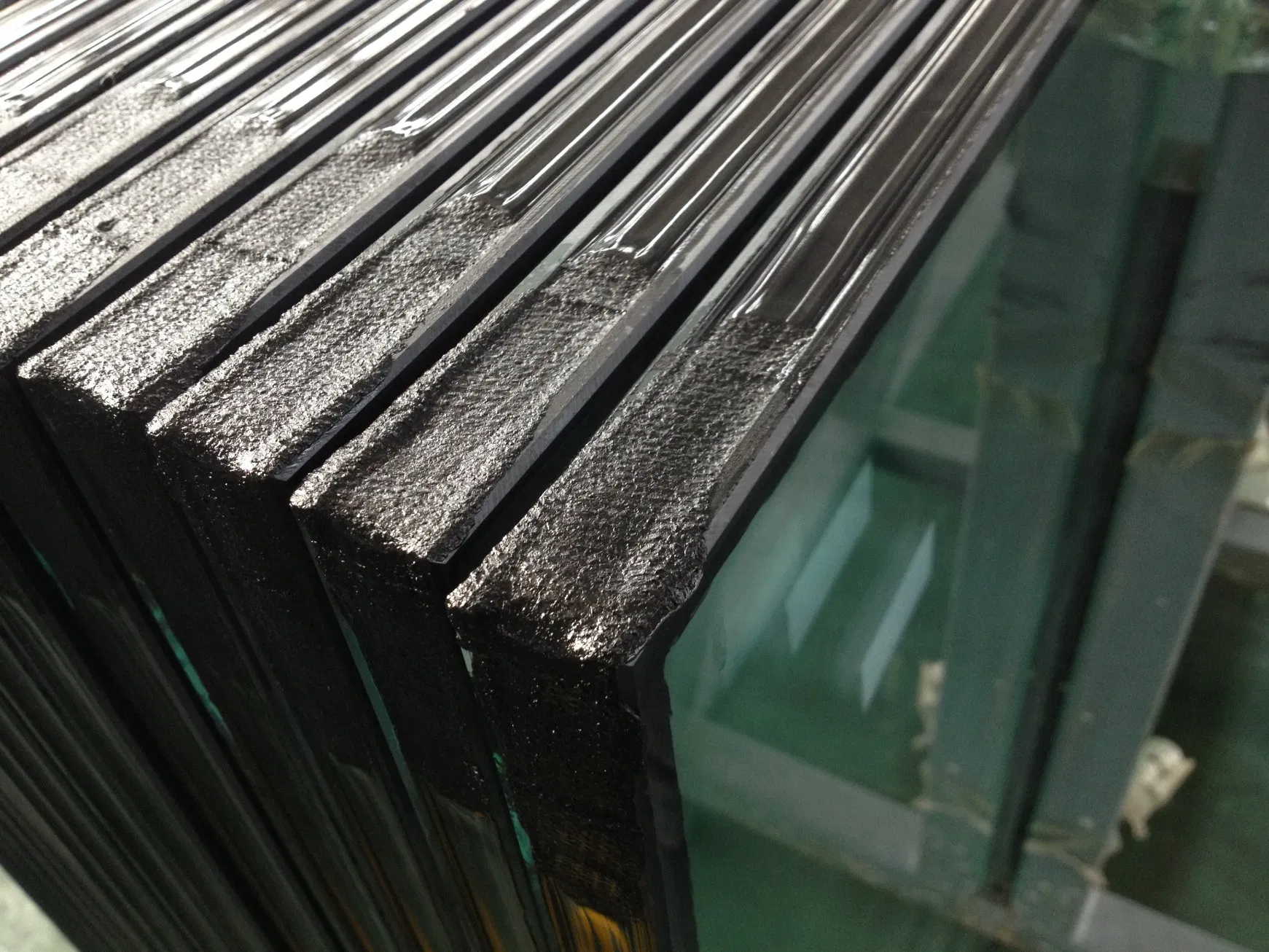

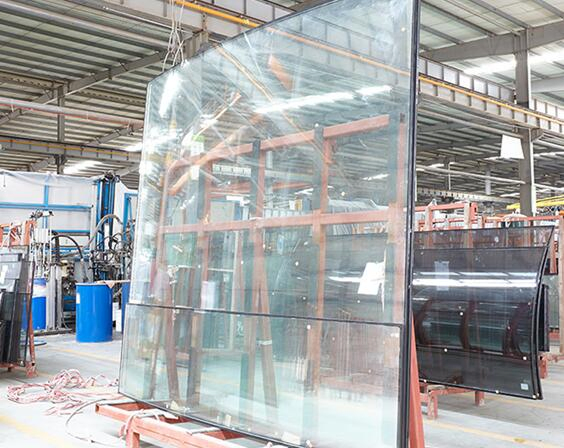

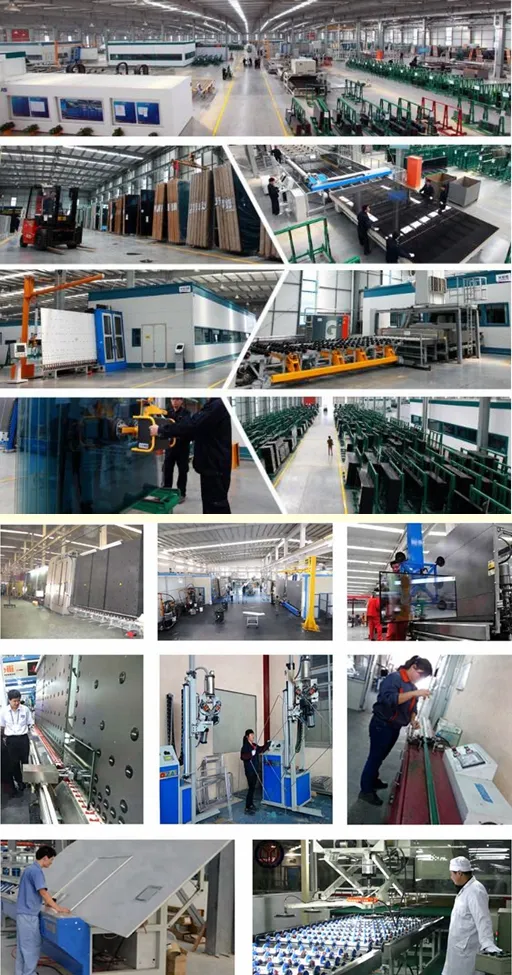

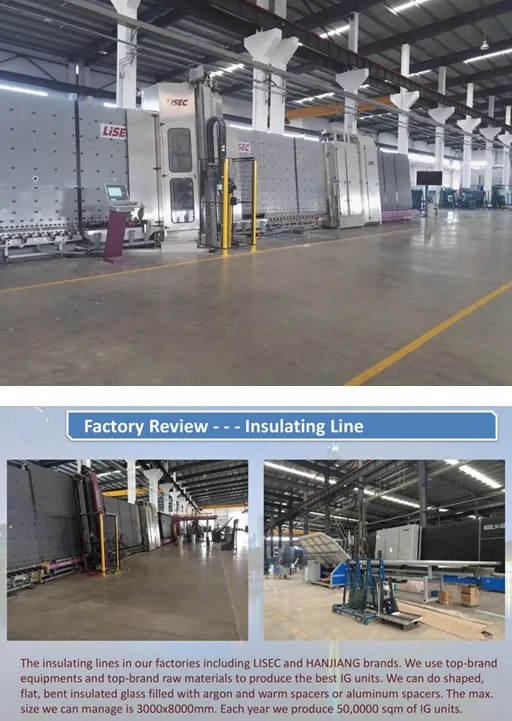

Product Gallery & Factory Overview

Solar Control Low E Insulated Glass Specifications

Frequently Asked Questions

What are the main benefits of Solar Control Low E Insulated Glass?

It significantly reduces solar heat gain and thermal loss (Low U-value), leading to energy savings, while providing excellent glare control and maintaining natural light levels.

How effective is this glass for soundproofing?

Our insulated glass units can reduce noise levels by approximately 30 dB. When filled with inert gases like argon, an additional 5 dB reduction can be achieved.

What size ranges do you offer for these units?

We can manufacture units from a minimum size of 150x150mm up to a maximum size of 3000x8000mm to accommodate large architectural requirements.

Can I combine this with other types of processed glass?

Yes, it can be matched with tempered glass, laminated glass, frosted glass, or color-printed glass to meet specific safety and aesthetic needs.

What ensures the long-term durability of the seal?

We use fully automatic machines to remove metal coatings on glass edges and apply high-quality primary and secondary sealants (butyl and silicone/polysulfide) to ensure a leak-proof finish.

What spacers are available for the insulated units?

We offer aluminum spacers, stainless steel spacers, and warm-edge spacers, which can be filled with dry air or argon gas for enhanced thermal performance.
