Vacuum Compatible Electrically Insulating Sapphire Glass for Aerospace and Scientific Instruments

1 / 5

Vacuum Compatible Electrically Insulating Sapphire Glass for Aerospace and Scientific Instruments

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

1-1000mm

Type

Rectangular Prism

Usage

Beam Dispersion, Beam Split, Medical, Optical

Shape

Cube Corner Prism

Material

Glass

Application

Medical Instrument

Customized

Transmittance

>95%

Lenses Color

Clear

Certification

RoHS, ISO9001

Coating

Hardness

Mohs Hardness of 9

Material Type

Synthetic Sapphire Glass

Density

3.98 G/Cm³

Refractive Index

1.761.77 (@589nm)

Polishing Grade

Optical (Ra<5nm)/Commercial (Ra<20nm)

Production Capacity

1,000,000/Year

Product Description

Parameter Category	Parameter Name	Value / Description	Notes

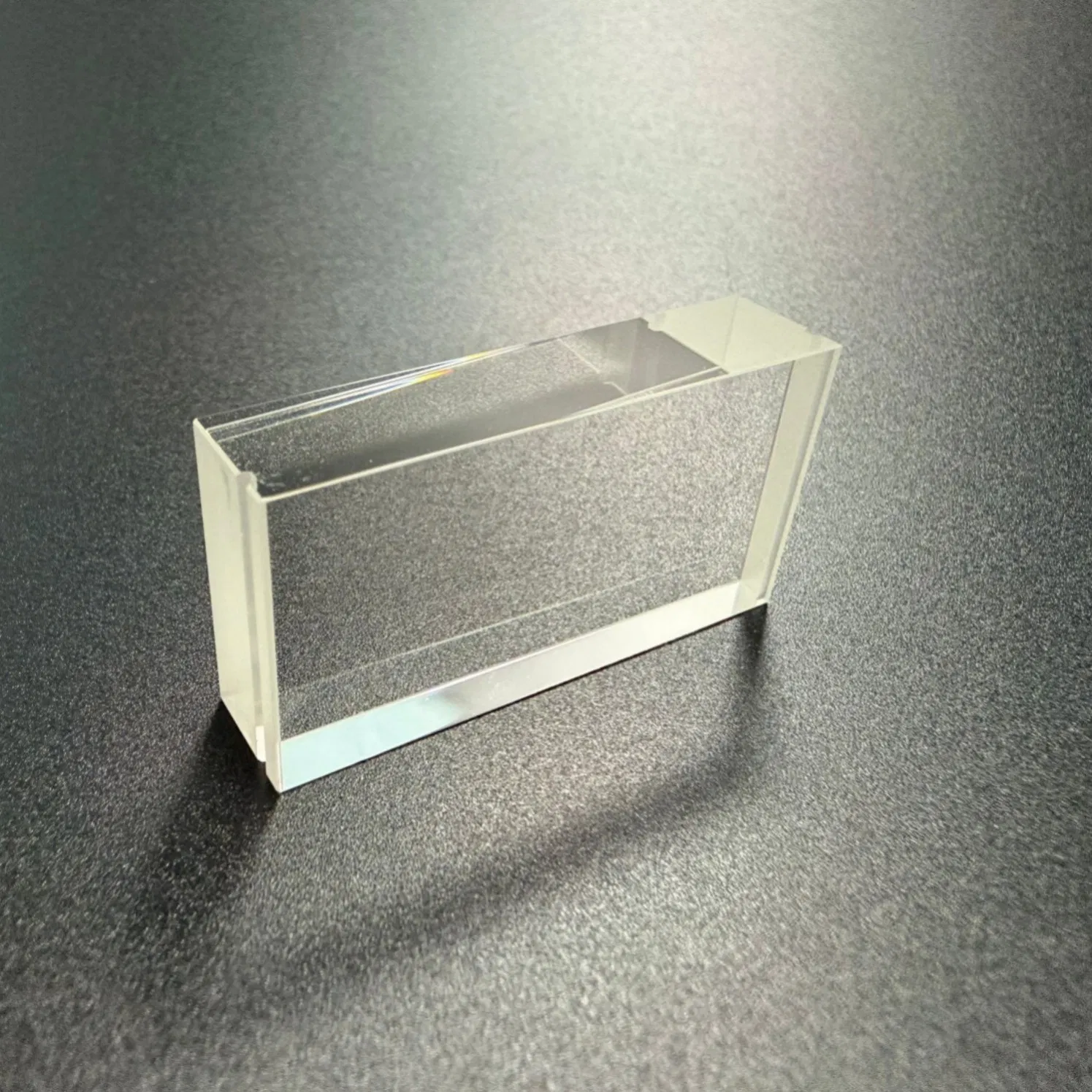

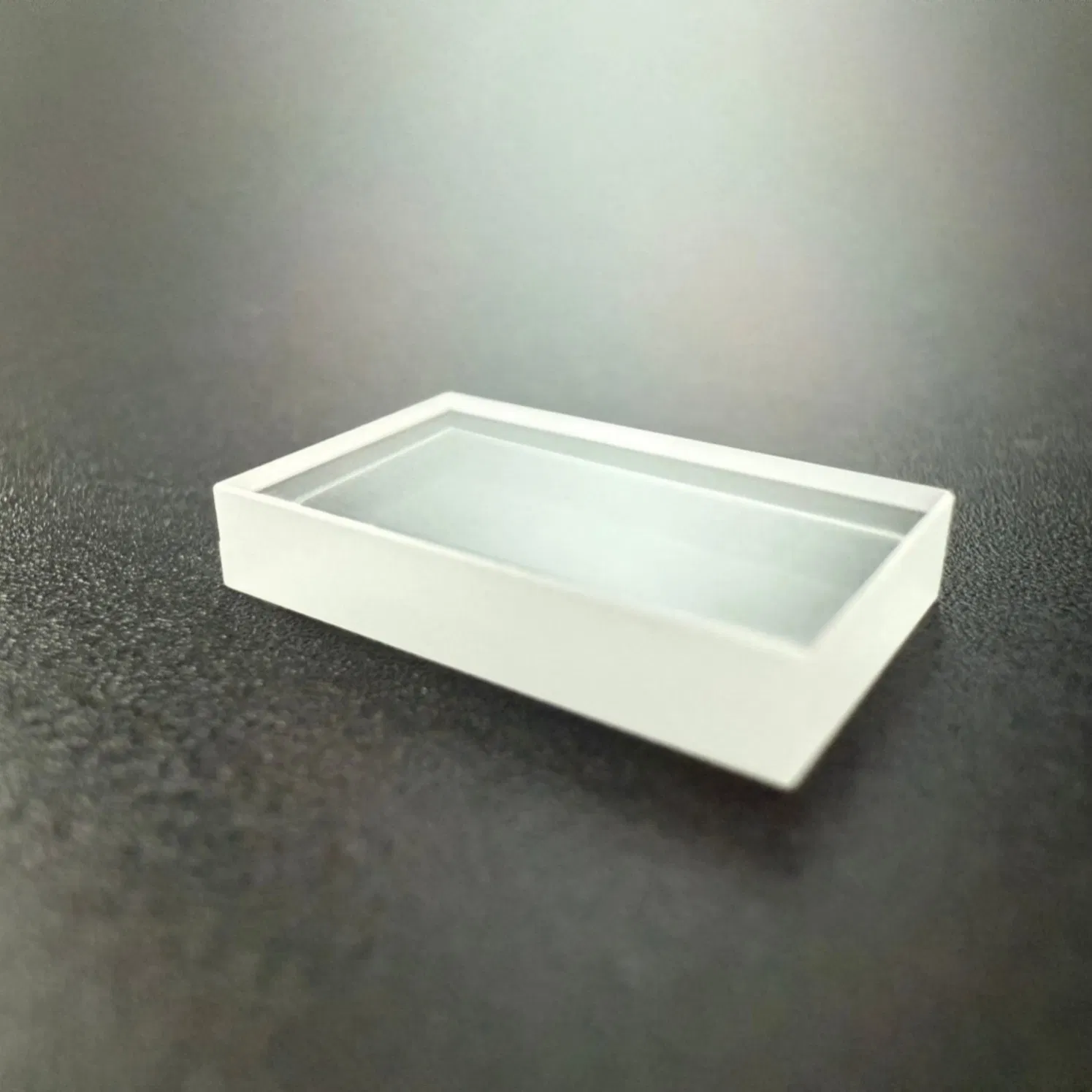

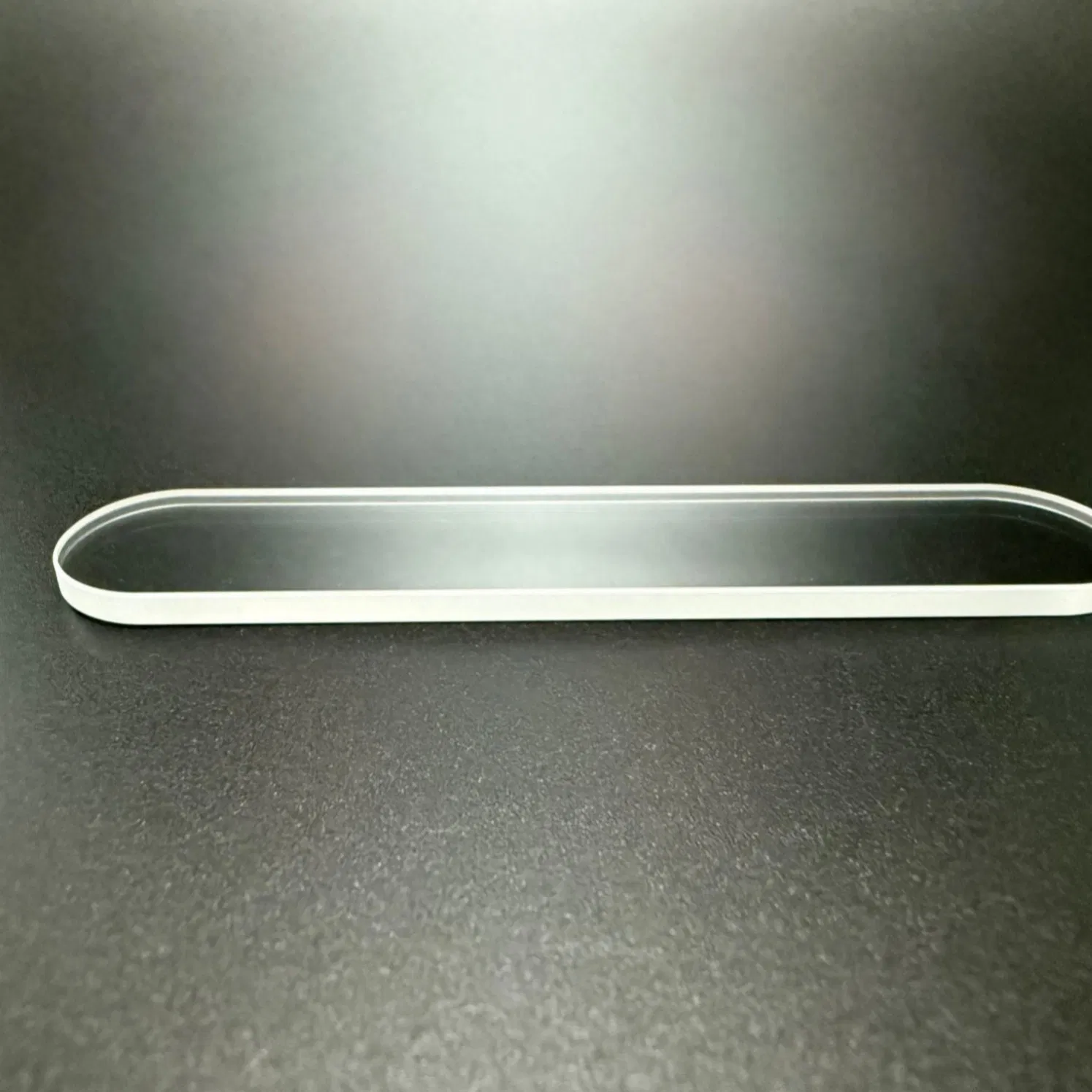

Basic Information	Product Name	Sapphire Glass Optical Window
Material	Composition	Single Crystal α-Aluminium Oxide
Material	Crystal Structure	Hexagonal Crystal System	Anisotropic
Physical	Density	3.97 - 3.99 g/cm³
Physical	Mohs Hardness	9	Second only to diamond
Physical	Young's Modulus	345 GPa
Thermal	Melting Point	2040 °C
Thermal	Operating Temp	1900 °C (Vacuum)	~1000°C (Air)
Optical	Transmission Range	0.15 μm - 5.5 μm	Deep UV to Mid-IR
Optical	Refractive Index	no = 1.768 / ne = 1.760	@587.6 nm
Surface	Flatness	λ/10 @ 632.8nm	High Precision
Surface	Finish Quality	10-5 Scratch-Dig	MIL-PRF-13830B
Chemical	Stability	Excellent resistance to acids/bases	Not resistant to HF

Certifications & Packing

Package Size

20.00cm * 20.00cm * 20.00cm

Gross Weight

1.000kg

Frequently Asked Questions

What are the main advantages of using sapphire glass over standard glass?

Sapphire glass offers extreme surface hardness (Mohs 9), high thermal conductivity, and a broad transmission range from UV to mid-infrared, making it ideal for harsh environments and high-precision optics.

Can the sapphire windows be customized in terms of shape and size?

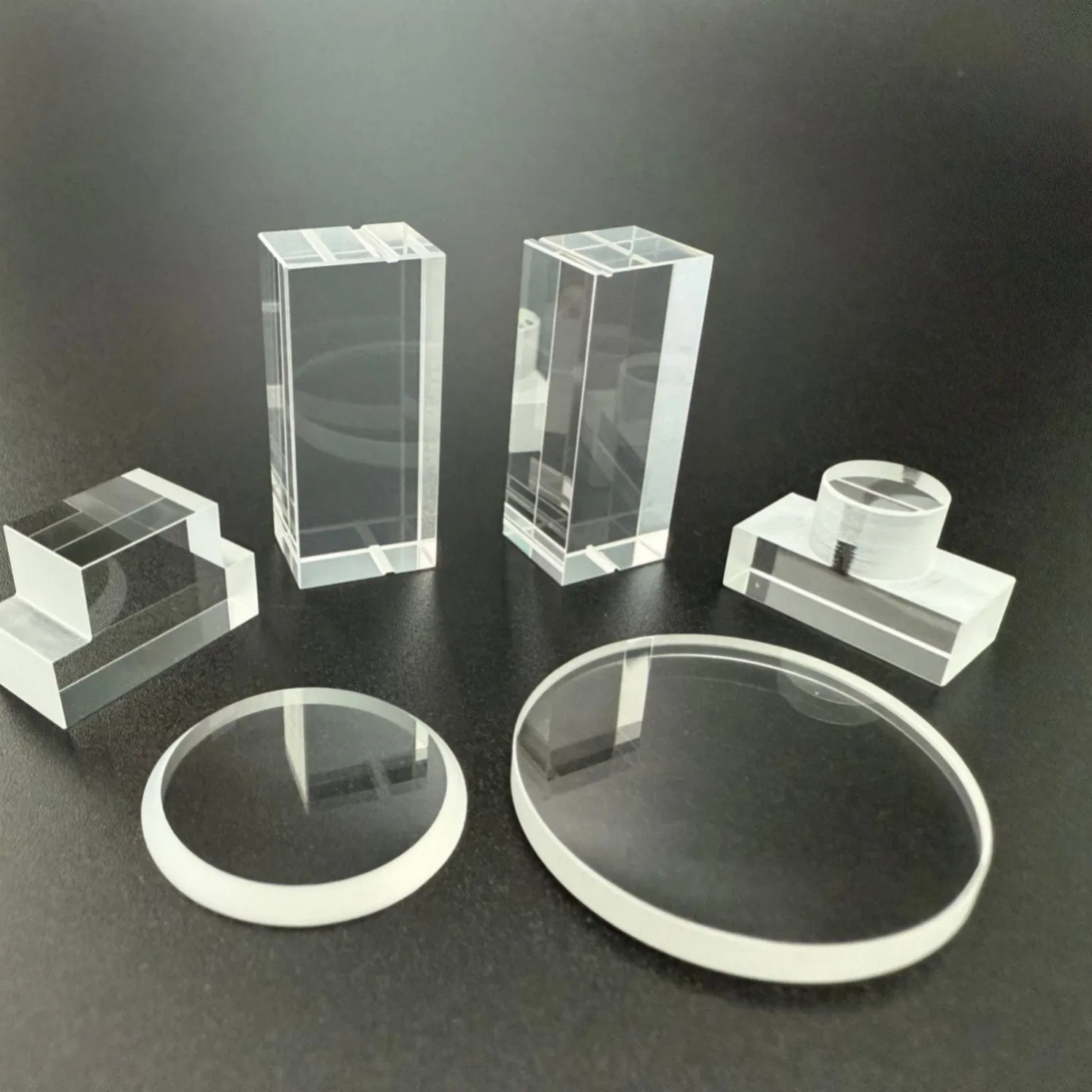

Yes, we provide full customization for dimensions ranging from 1mm to 1000mm, including flat, spherical, and aspheric forms to meet specific instrument requirements.

What types of coatings can be applied to these sapphire components?

We offer various coating options including Anti-Reflection (AR), High Reflection (HR), Oleophobic/Hydrophobic, and Conductive (ITO) coatings.

Is sapphire glass resistant to chemical exposure?

Sapphire is highly chemically inert and insoluble in water. It is resistant to most strong acids and bases, except for Hydrofluoric acid (HF) and hot Phosphoric Acid.

What is the typical surface quality provided?

Our standard surface finish is 10-5 Scratch-Dig according to MIL-PRF-13830B, with high-grade options available up to 20-10 for demanding applications.
