Basic Specifications
Model NO.
Landvac vacuum glass
Glass Thickness
8mm - 11mm
Color
Clear, Ultra Clear, Dark Gray, Ocean Blue, Sapphire
Weight
20-28 Kg/Square Meter

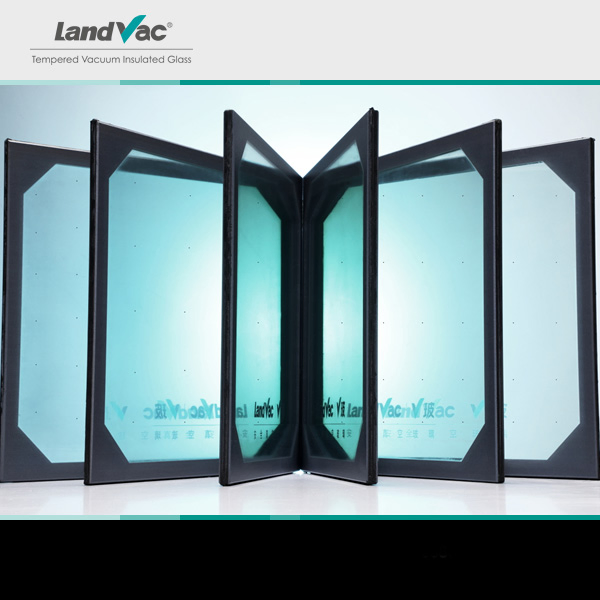

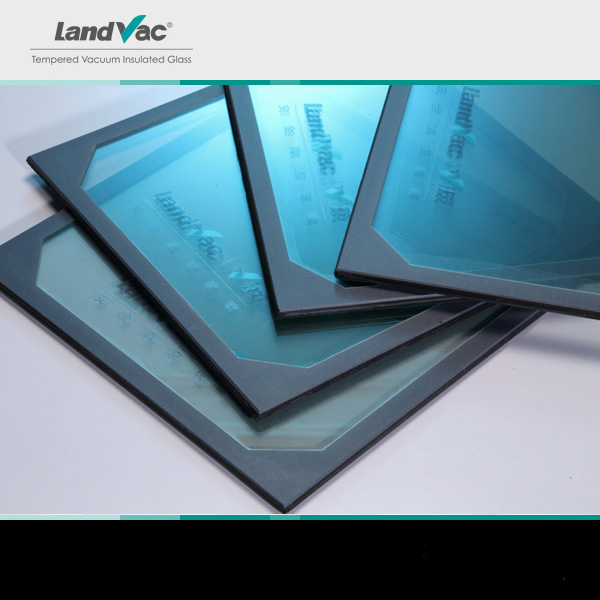

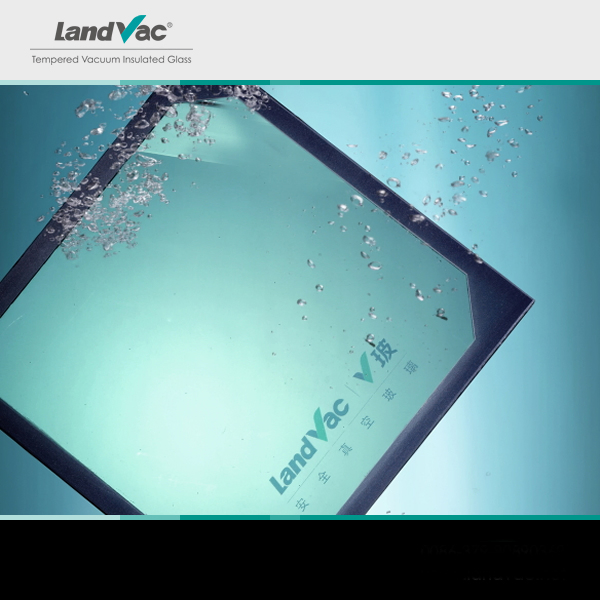

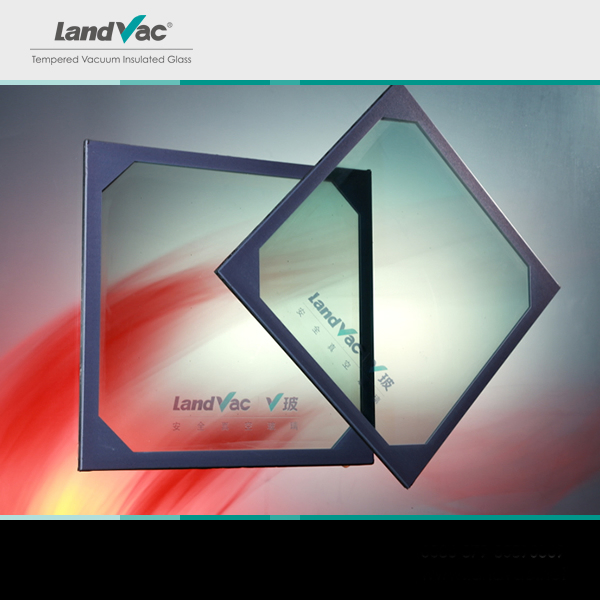

Energy Saving Window Super Thin Low-E Tempered VIG
🌡️

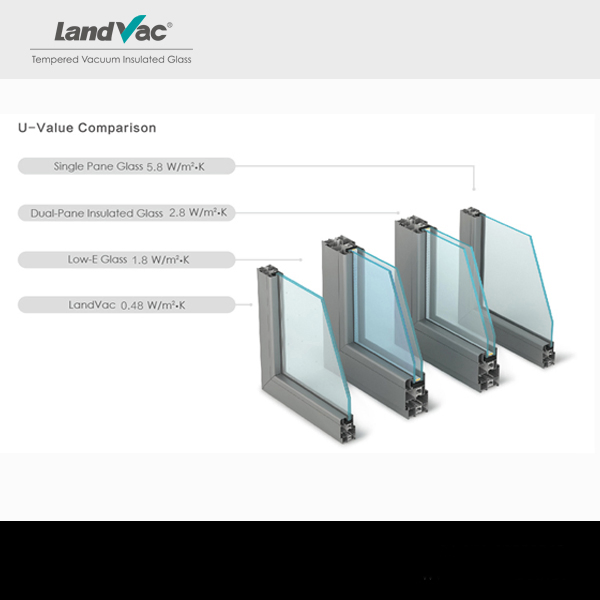

Thermal Insulation
U-Value as low as 0.4W/(m²·K). An 8.3 mm thick glass has better thermal insulation than a 1.5m thick brick wall.
🔇
Noise Reduction
Weighted sound reduction index exceeding 36dB, making busy downtown rooms as quiet as a library.
❄️
Free of Condensation
Remains clear even when temperatures fall below -70 °C, maintaining exceptional transparency.
Product Type & Performance Data
| Product Type |
Structure |
Thickness (mm) |
U-value (W/m²K) |
SHGC |
Sound Isolation (dB) |
| LandVac |
4TL+0.3V+4T |
8.3 |
0.48 |
0.49 |
39 |
| Triple Glazing |
4T+12A+4TL+0.3V+4T |
24.3 |
0.42 |
0.45 |
42 |

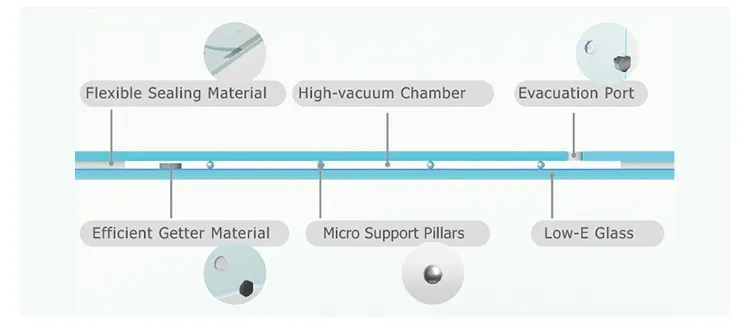

Structure & Key Advantages
Technical Excellence

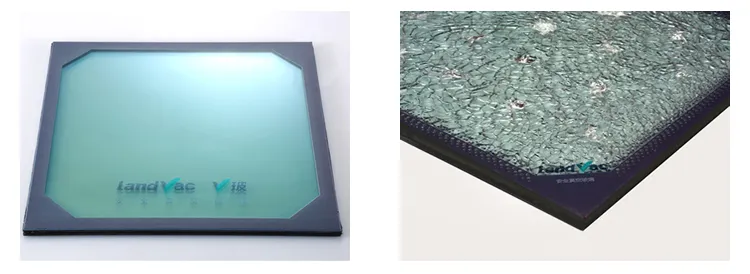

Tempered Safety Glass
Retains safety features against impact with surface stress exceeding 90MPa, meeting global safety standards.
Superior Sealing
Uses flexible edge sealing materials to withstand thermal expansion and high vacuum consistency.
Main Applications
Architecture
Doors, windows, curtain walls, skylights for green buildings.
Home Appliances
Freezers, wine cabinets, and display cases.
Transportation
High-speed rail, aircraft, and vessels.
Agriculture
Modern greenhouse farming with high insulation.

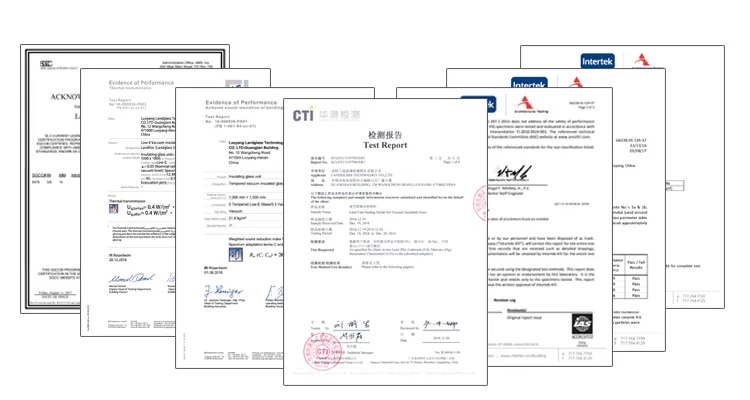

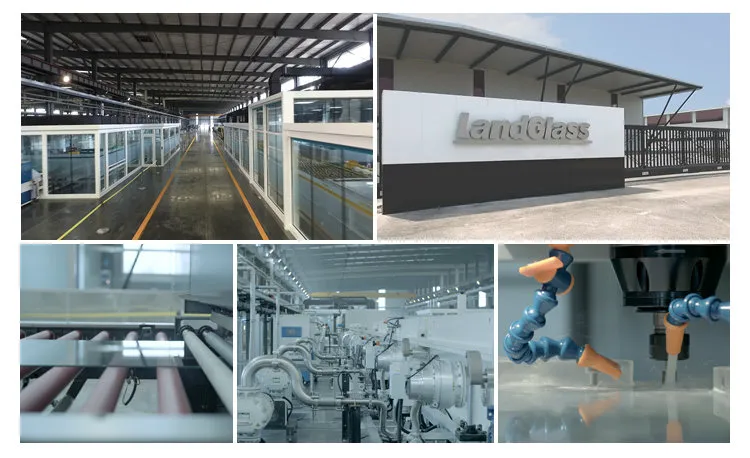

Manufacturing & Certification
Frequently Asked Questions
Q1: What is the main benefit of vacuum insulating glass compared to normal glass?
Vacuum insulating glass (VIG) offers significantly higher thermal insulation (U-value as low as 0.48) and superior noise reduction in a much thinner and lighter profile compared to traditional double or triple glazing.
Q2: Is LandVac glass safe for high-rise buildings?

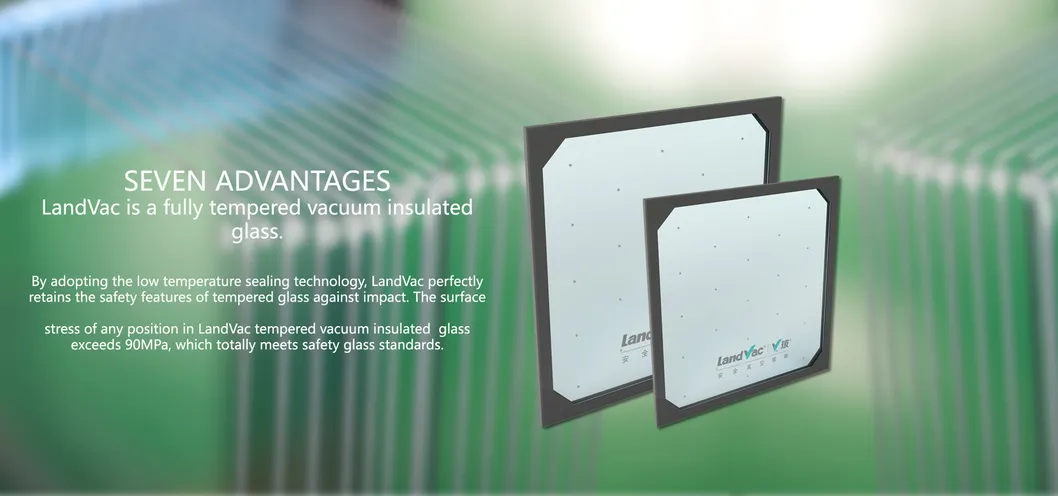

Yes, it is a fully tempered vacuum insulated glass. It perfectly retains the safety features of tempered glass with surface stress exceeding 90MPa, meeting international safety standards for impact.

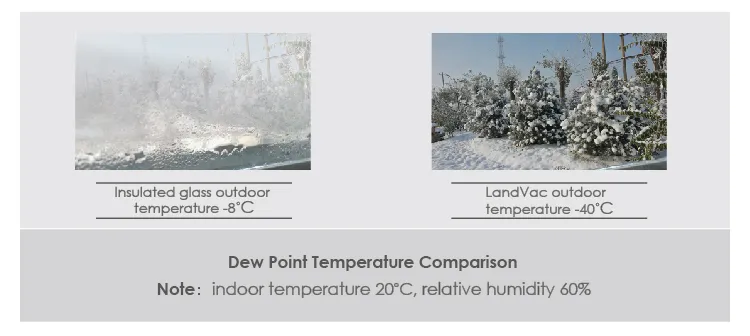

Q3: Does vacuum glass prevent window condensation?
Absolutely. The high vacuum interspace eliminates heat transfer, ensuring the interior glass surface remains free of condensation even when outdoor temperatures fall to -40 °C.
Q4: How long is the life expectancy of vacuum glass?
The life expectancy of our vacuum insulated glass exceeds 25 years, thanks to flexible edge sealing technology and built-in high-efficiency getter materials that prevent sealing failure.
Q5: Can it be used in refrigerators or wine cabinets?
Yes, its thin profile, energy-saving properties, and condensation-free performance make it ideal for freezers, wine cabinets, and commercial display cases.
Q6: What are the maximum dimensions available?
The maximum dimension for LandVac vacuum glass is 1500 x 2500 mm, with a minimum size of 300 x 300 mm.
