U-Value as low as 0.4W/(m²·K). An 8.3 mm thick glass has better thermal insulation than a 1.5m thick brick wall.
Weighted sound reduction index exceeding 36dB, effectively blocking urban noise for a quiet environment.

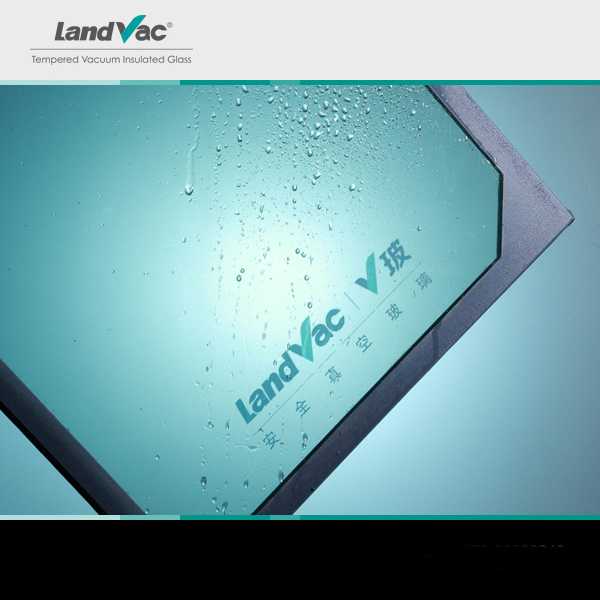

Maintains transparency even when temperatures fall below -70 °C, eliminating dew point issues.
Surface stress meets safety glass standards with wind resistance up to ±7200Pa.

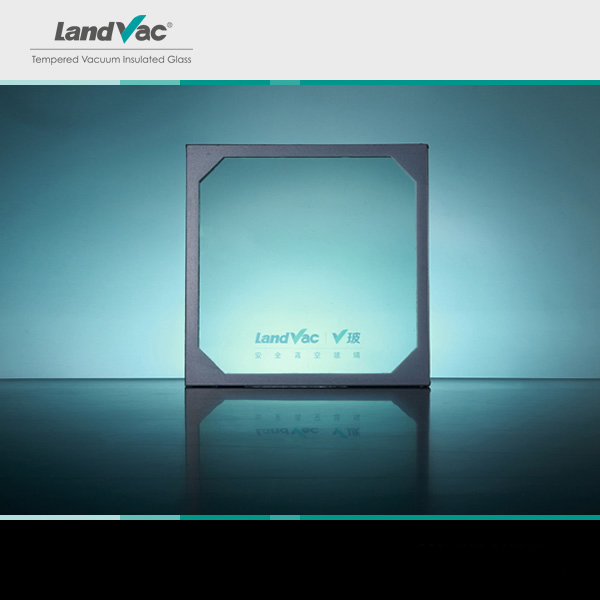

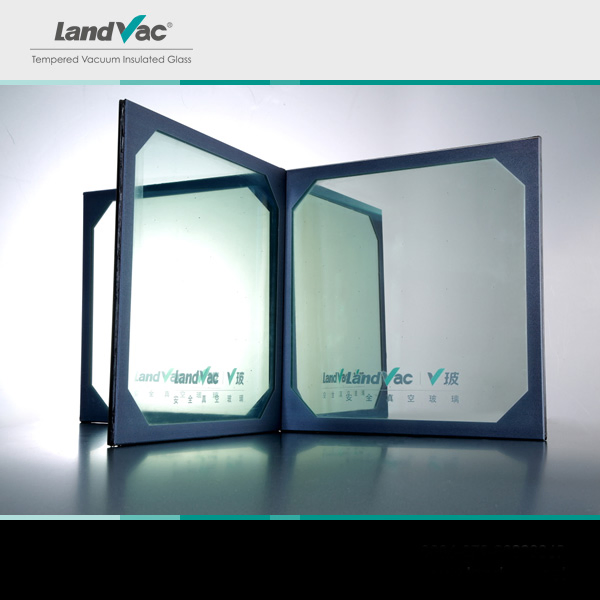

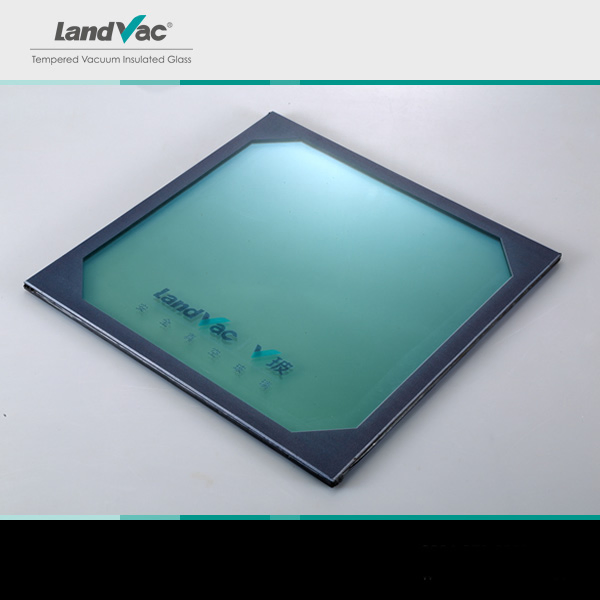

LandVac® is a new generation tempered vacuum insulated glass. Using exclusive low temperature sealing technology, it provides outstanding thermal and sound insulation while retaining high strength and safety standards for green buildings and high-end appliances.

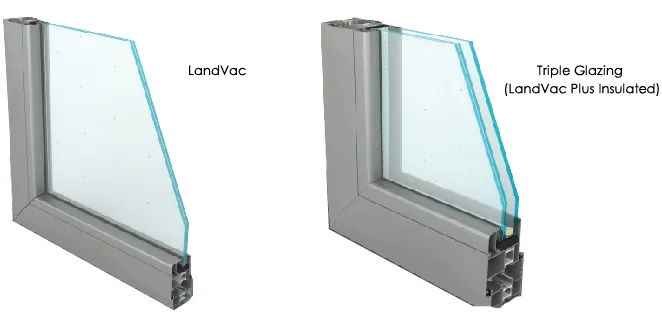

| Product Type | Structure | Thickness (mm) |
|---|---|---|
| LandVac | 4TL+0.3V+4T | 8.3 |
| Triple Glazing (Plus Insulated) | 4T+12A+4TL+0.3V+4T | 24.3 |
| Product Type | U-value (W/m²K) | SHGC | SC | Sound Isolation (dB) |
|---|---|---|---|---|
| LandVac | 0.48 | 0.49 | 0.56 | 39 |
| Triple Glazing | 0.42 | 0.45 | 0.52 | 42 |

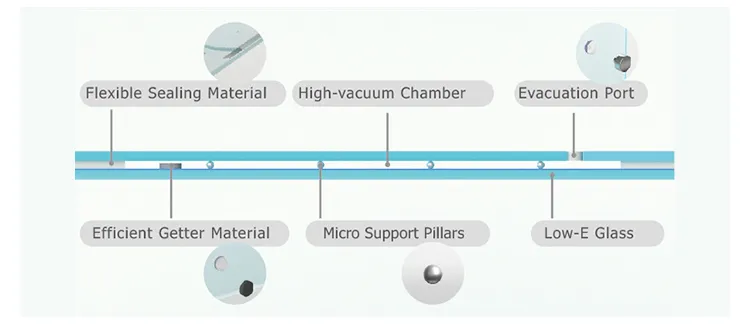

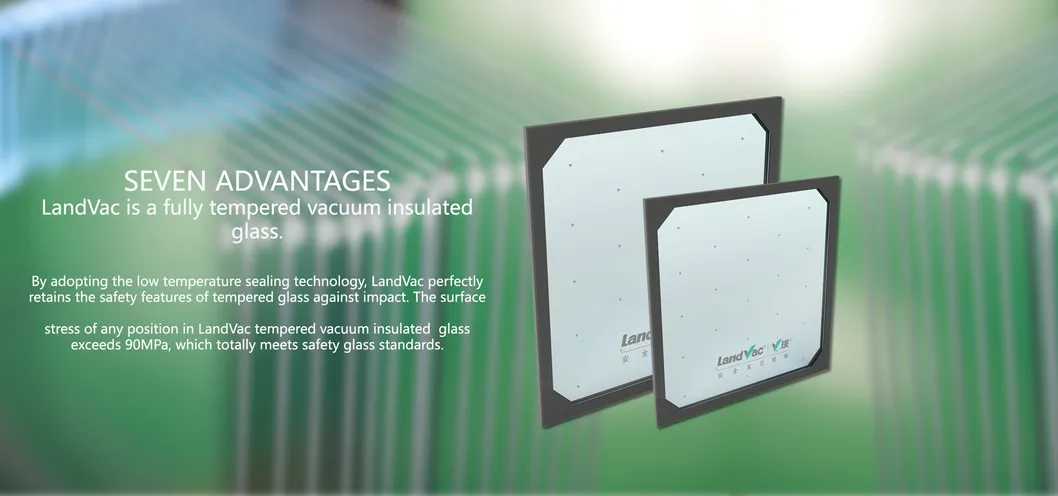

| Low Temperature Sealing | Surface stress exceeds 90MPa, perfectly retaining the safety features of tempered glass against impact. |
| Flexible Edge Sealing | Higher resistance against thermal expansion and contraction, preventing sealing failure from temperature differences. |
| High Vacuum Sealing | Maintains high degree vacuum consistency between layers for remarkable durability. |
| Flat Sealing Technology | The sealing does not protrude, ensuring elegant appearance and safe transportation. |
