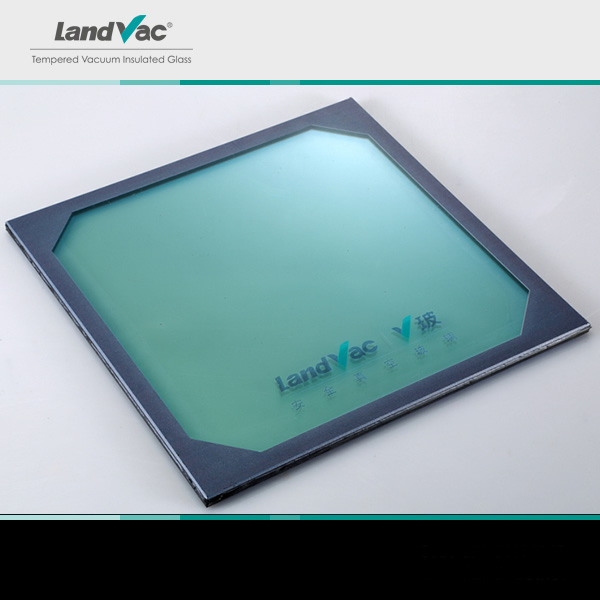

Landvac Sound Proof SGCC Vacuum Insulating Glass

1 / 5

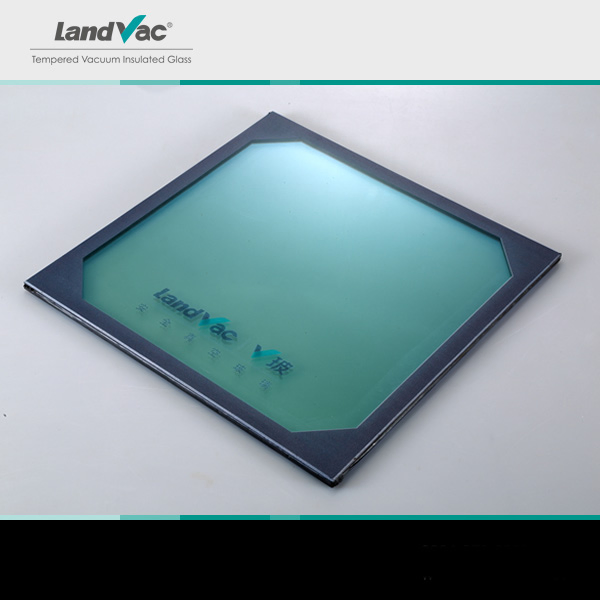

Landvac Sound Proof SGCC Vacuum Insulating Glass

Product Name:	China Factory 8mm Customized Soundproof Tempered C
Application:	Architectures,BIPV,Agriculture,Vehicles
Max.Demension:	1500*2500mm

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

Landvac vacuum glass

Min. Dimension

300*300mm

Thickness

8-11mm

Vacuum Layer

0.3mm

Weight

20-28 Kg/m²

Color Choice

Clear, Ultra Clear, Dark Gray, Ocean Blue, Sapphire

Glass Supplier

Csg, Pilkington, Xinyi, Taiwan Glass, G-Crystal

Service

Customized Service

HS Code

7008001000

Capacity

10000 Square Meters Per Month

🔍

Product Description

High-performance customized soundproof tempered vacuum insulated glass solutions. LandVac is an all-new generation tempered vacuum insulated glass developed with independent intellectual property rights.

🌡️ Thermal Insulation U-Value as low as 0.4W/(m²·K). An 8.3 mm thick LandVac has better insulation than a 1.5m thick brick wall.

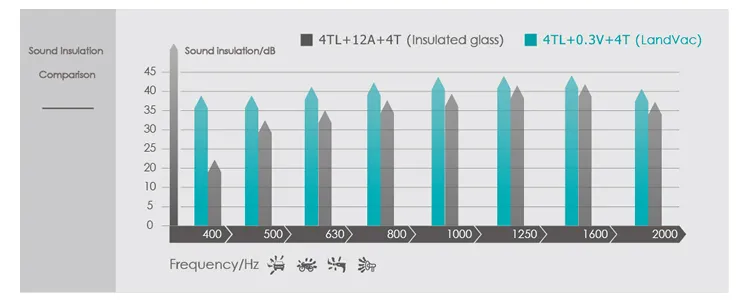

🔇 Noise Reduction Weighted sound reduction index exceeding 36dB, making downtown environments as quiet as a library.

❄️ Free of Condensation Remains condensation-free even when temperatures fall below -70 °C, maintaining exceptional transparency.

🛡️ Tempered Safety Surface stress meet tempered glass standards with wind resistance up to ±7200Pa.

📊

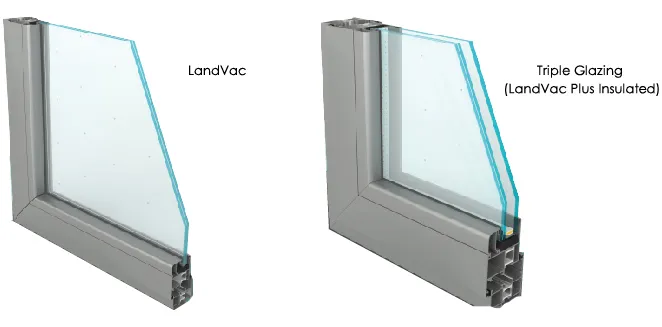

Product Type & Performance

Product Type	Structure	Thickness (mm)	U-value (W/m²K)	SHGC	Sound Isolation (dB)

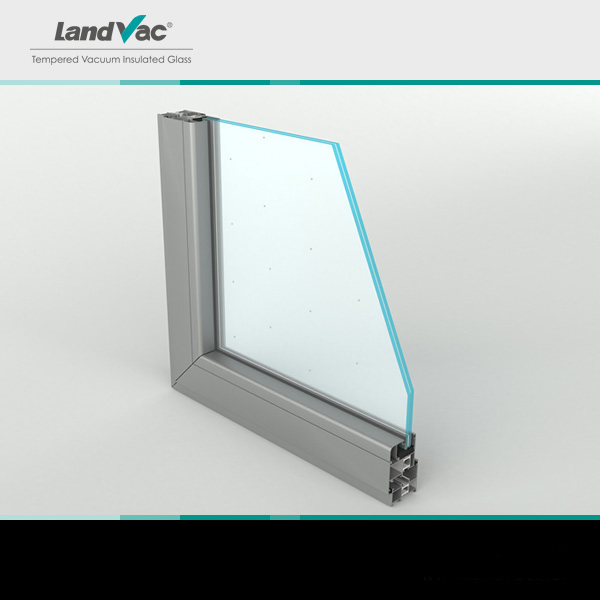

LandVac	4TL+0.3V+4T	8.3	0.48	0.49	39
Triple Glazing	4T+12A+4TL+0.3V+4T	24.3	0.42	0.45	42

💎

Seven Key Advantages

Tempered Safety Glass

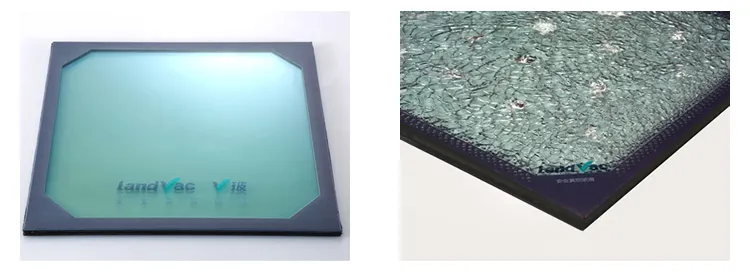

LandVac is a fully tempered vacuum insulated glass. By adopting low temperature sealing technology, it perfectly retains safety features against impact. Surface stress exceeds 90MPa.

Energy Saving & Life Span

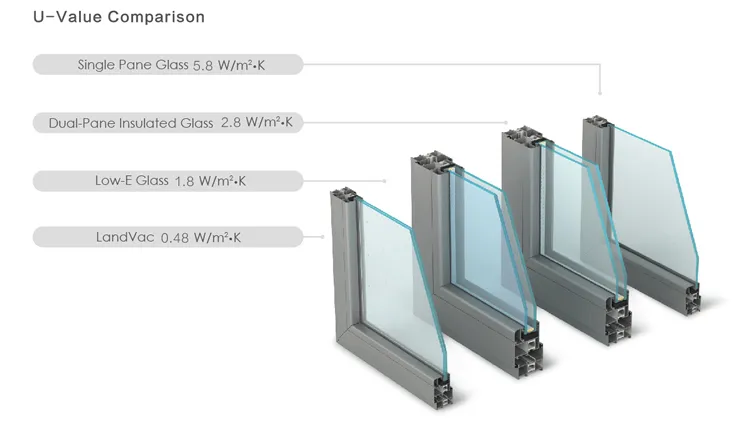

Thermal insulation is 2 to 4 times better than regular insulated glass and 6 to 10 times better than single pane glass. The life expectancy exceeds 25 years due to flexible edge sealing materials.

⚙️

Advanced Technologies

Low Temp Sealing	Retains safety features of tempered glass by avoiding annealing during the sealing process.
Flexible Edge Sealing	Higher resistance against thermal expansion and contraction, preventing sealing failure.
Flat Sealing	Sealing does not protrude, ensuring easy transportation and elegant mounting.

🏠

Wide Applications

ArchitectureWindows, curtain walls, and skylights for green buildings.

Home AppliancesIdeal for freezers, wine cabinets, and display cases.

TransportationHigh-speed rail, aircraft, and luxury vessels.

Scientific ResearchObservation windows for extreme low-temp environments.

🏭

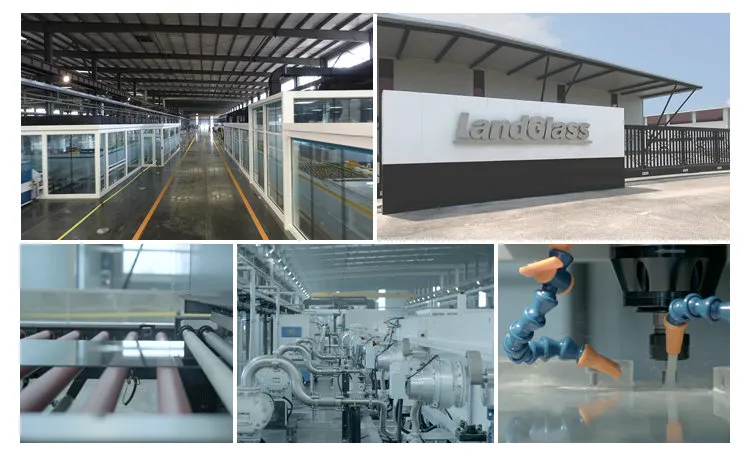

Manufacture & Quality

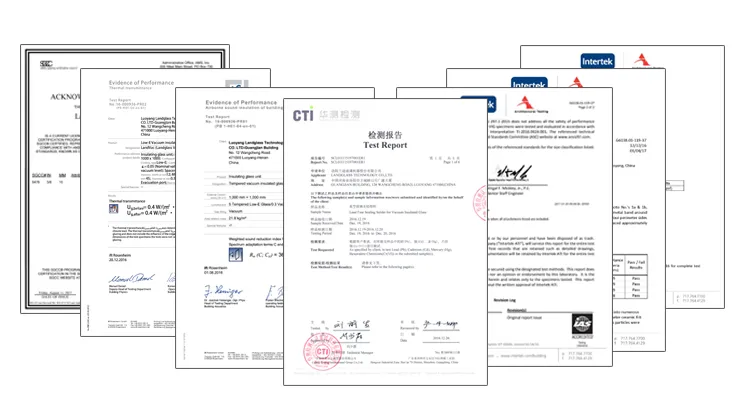

The tempered vacuum insulated glass production line commercializes environmental protection. Approved by authoritative third parties, LandVac reaches Level 10 in thermal insulation and Level 4 in sound insulation.

❓

Frequently Asked Questions

What is the thermal insulation performance of LandVac?

LandVac offers exceptional thermal insulation with a U-value as low as 0.48 W/(m²·K), which is 2 to 4 times better than standard insulated glass.

Can vacuum glass reduce noise effectively?

Yes, LandVac has a weighted sound reduction index exceeding 36dB, effectively blocking medium and low-frequency noises like traffic and construction.

Does LandVac tempered vacuum glass prevent condensation?

Absolutely. The high vacuum interspace eliminates condensation even when the outdoor temperature drops to -40 °C or even -70 °C.

Is LandVac safe for residential use?

Yes, it is fully tempered safety glass. The surface stress exceeds 90MPa, meeting international safety glass standards for impact and wind resistance.

How long does the vacuum glass last?

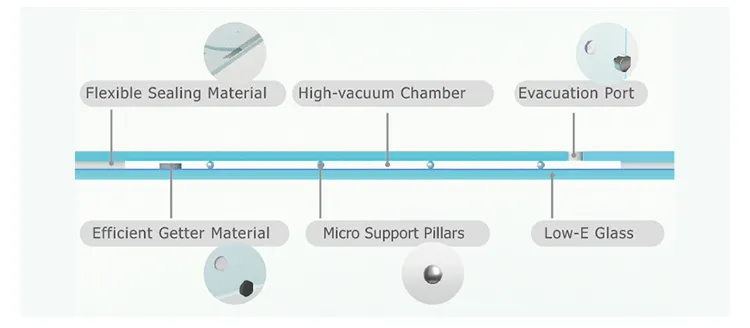

The life expectancy of LandVac exceeds 25 years, thanks to its flexible edge sealing technology and built-in high-efficiency getter materials.

What are the typical applications for vacuum insulated glass?

It is widely used in architecture (windows, skylights), home appliances (freezers, wine cabinets), transportation (high-speed rail), and BIPV projects.
