Hig Quality U Channel Glass for Building Decoration

1 / 5

Hig Quality U Channel Glass for Building Decoration

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Shape

Function

Thermal Function

Processing

Molding

Color

Clear

Usage

Building

Transport

Customized

Origin

Shangdong, China

Capacity

200 Tons/Day

🔹 Product Description

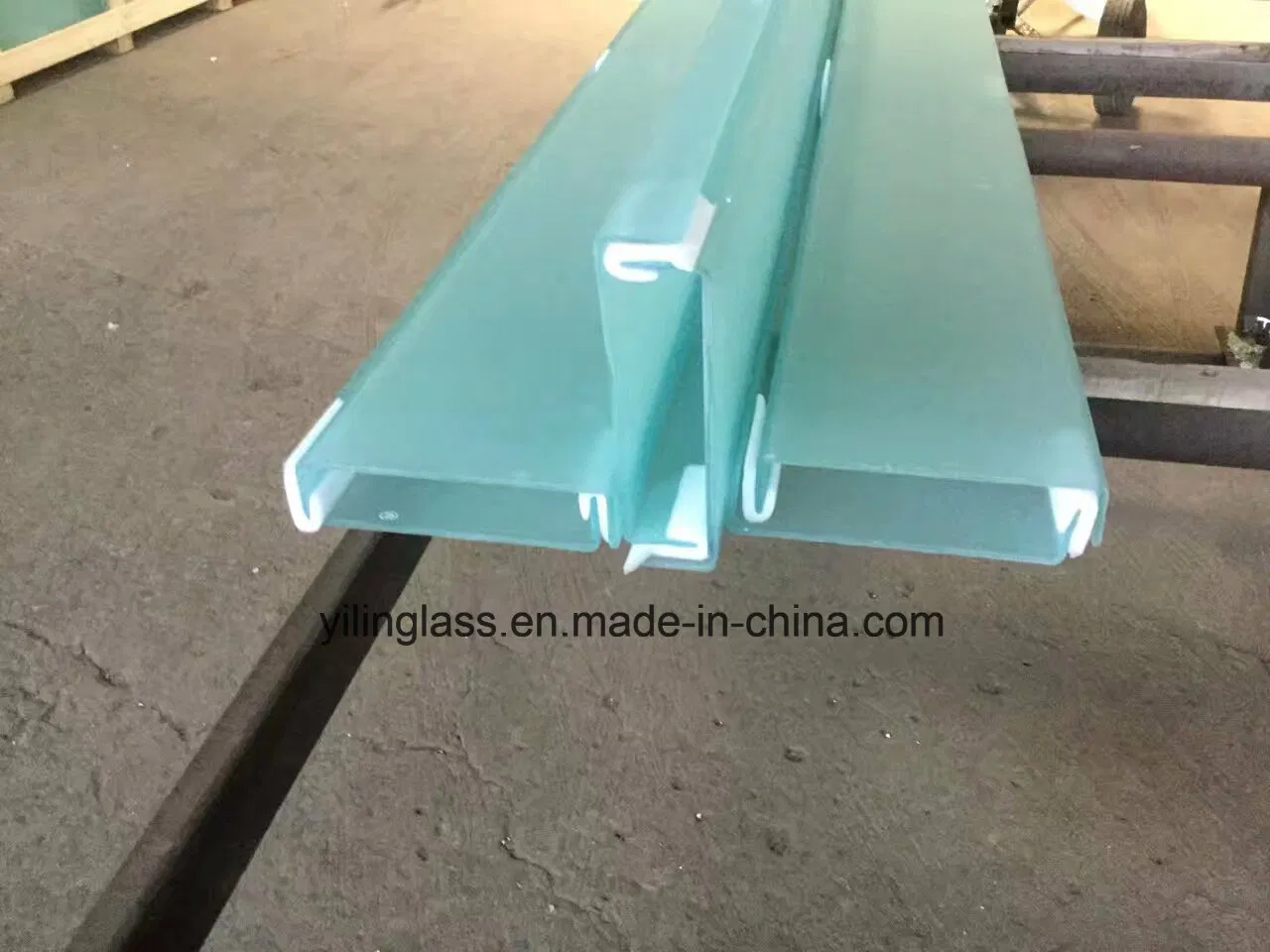

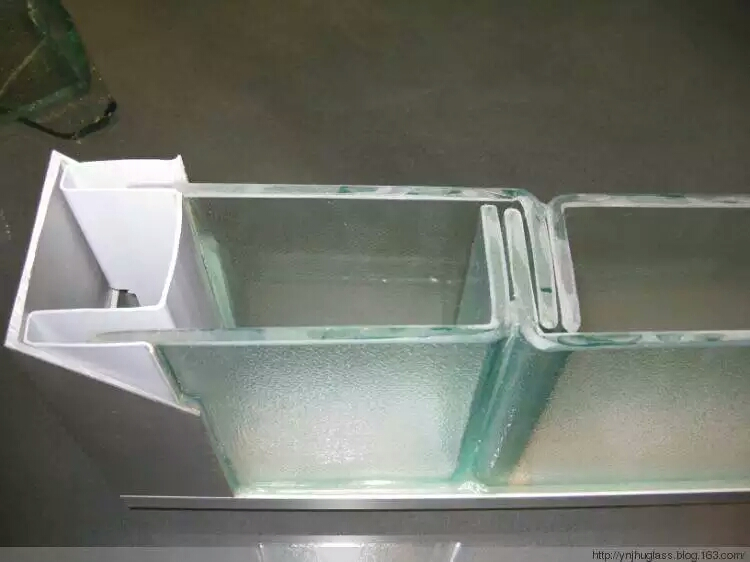

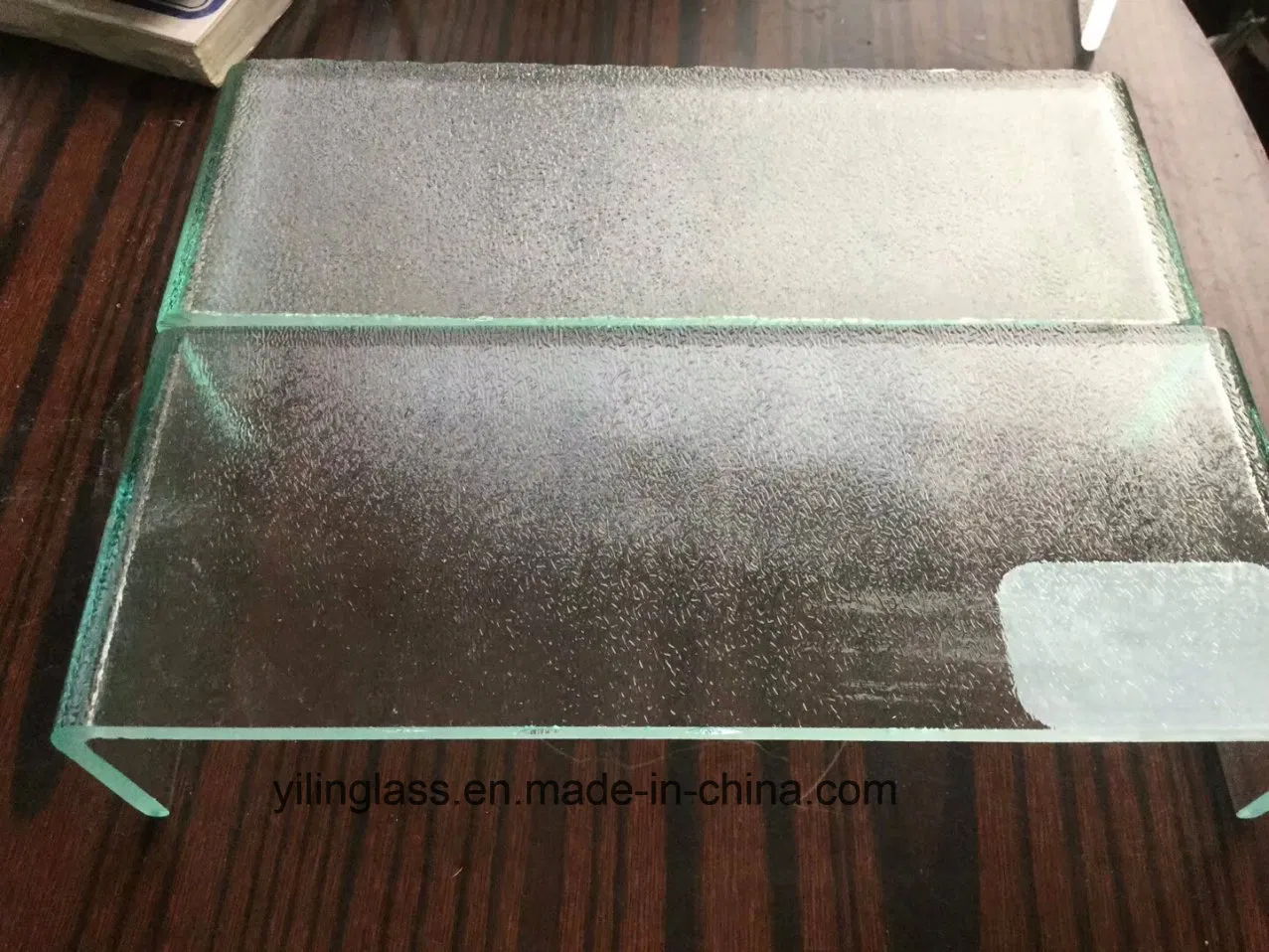

U-profile glass is one kind of casting glasses. Its progress of forming in the computer-control smelting furnace enables it to keep excellent quality and precision. Its high mechanical strength enables it to be fixed on high-rise buildings and other buildings which need good lighting. This can save the buildings from extra vertical and horizontal underpinning. U-profile glass is featured by its good lighting, heat insulation and preservation, sound insulation and noise protection—it's one of the new type environment-friendly and economical glasses.

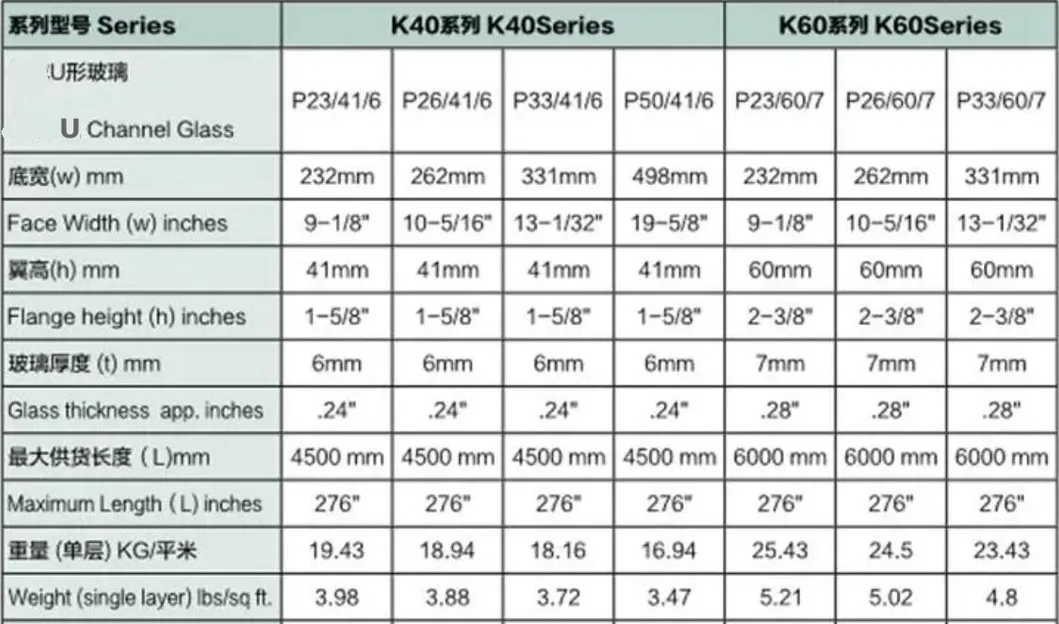

📏 Specifications

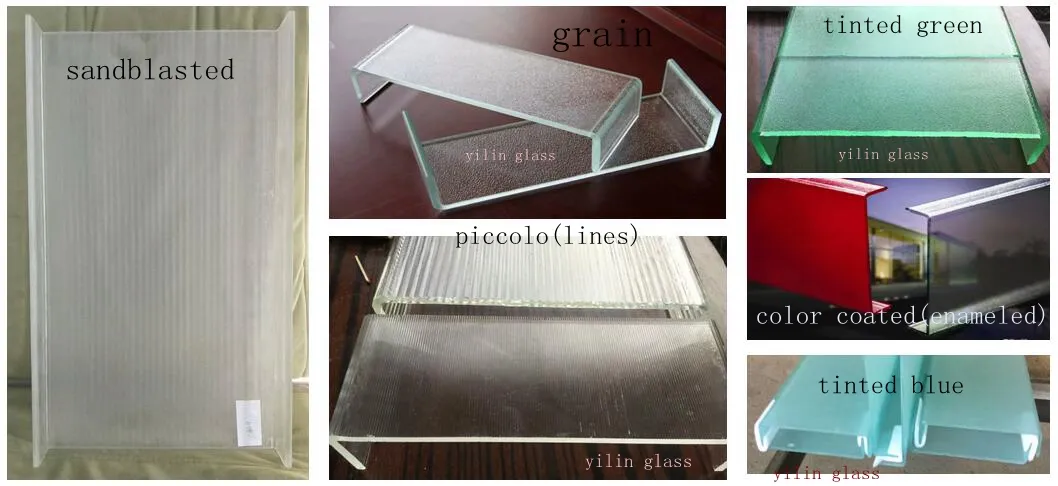

🎨 Glass Surface Treatment & Low Iron

1) Pear-grain: A hammered pearl or orange peel texture provides moderate translucency; features excellent light scattering properties.

2) Ice: An organic, heavily obscuring texture. Excellent for single glazed applications creating privacy or hiding views.

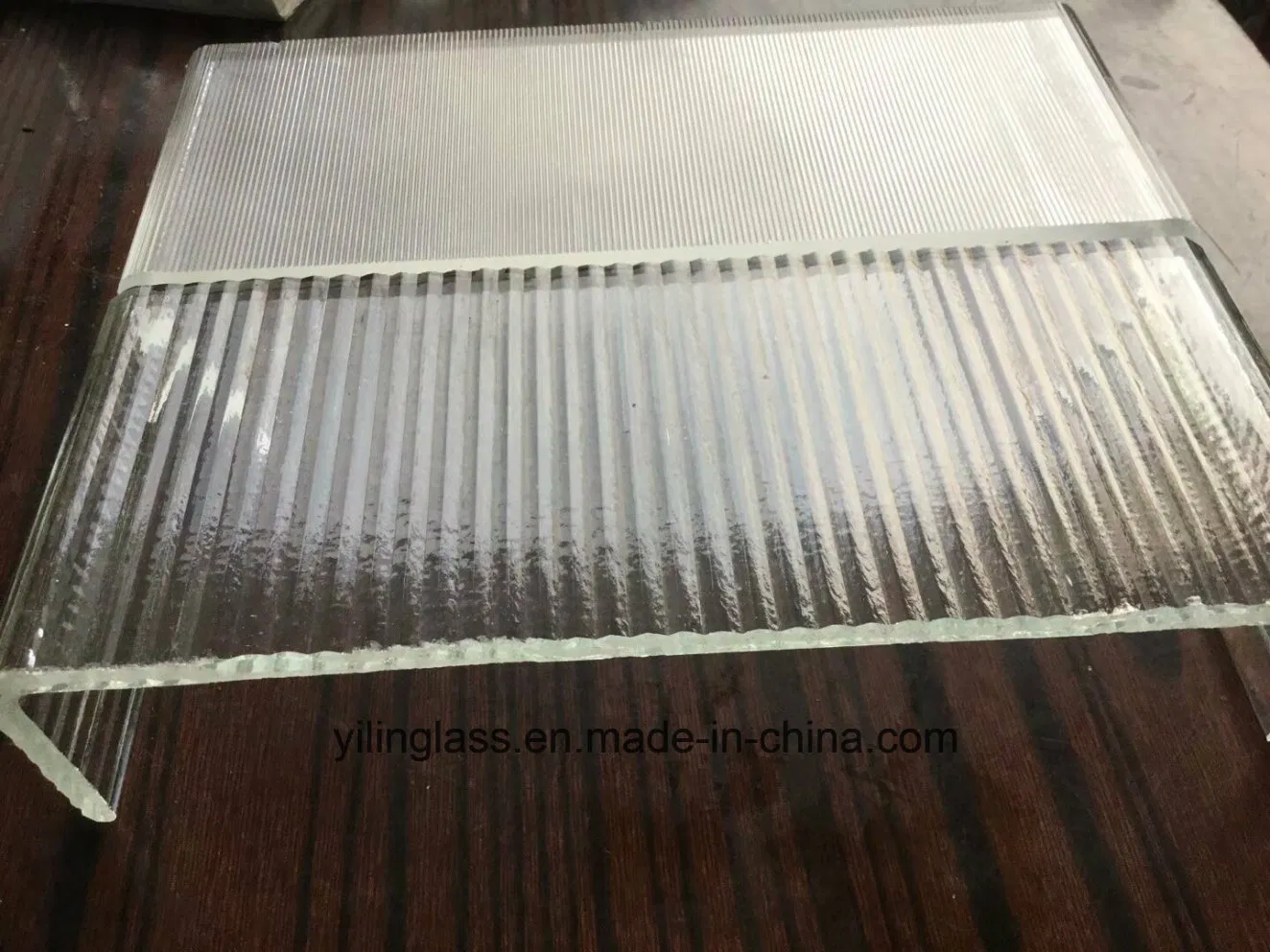

3) Piccolo: Available in thin lines or thick lines.

4) Ultra Clear (Low Iron): Special production made with raw materials containing low iron. The glass is almost colorless, displaying a slight greenish cast.

5) Tinted Blue: Available for aesthetic variety.

6) Enameled: Ceramic fritted or color coated options available according to RAL or Pantone numbers.

7) Sandblast: Light diffusing, frosted aesthetic with a protective coating to reduce fingerprinting.

Specially, Customized size and pattern are available.

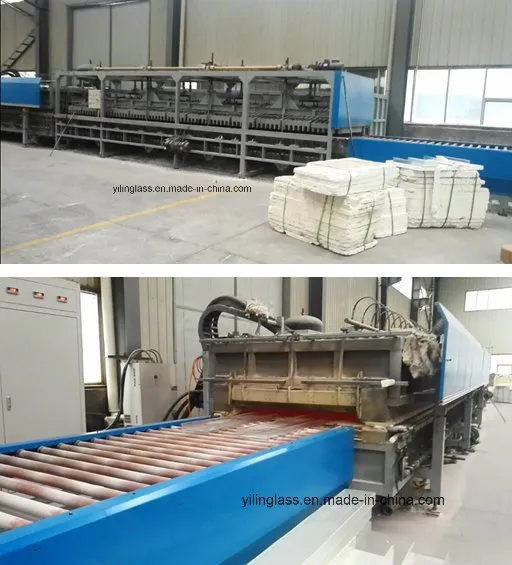

🛡️ Tempering Process

The tempering process for channel glass handles lengths up to 20' using custom ovens exclusively for three-dimensional channel glass. Tempered channel glass is annealed glass that has undergone a second heat treatment to raise compression to 10,000 psi or greater. It is three to four times stronger than annealed glass and is recognized by its "dicing" break pattern—small, harmless fragments that markedly reduce the likelihood of injury.

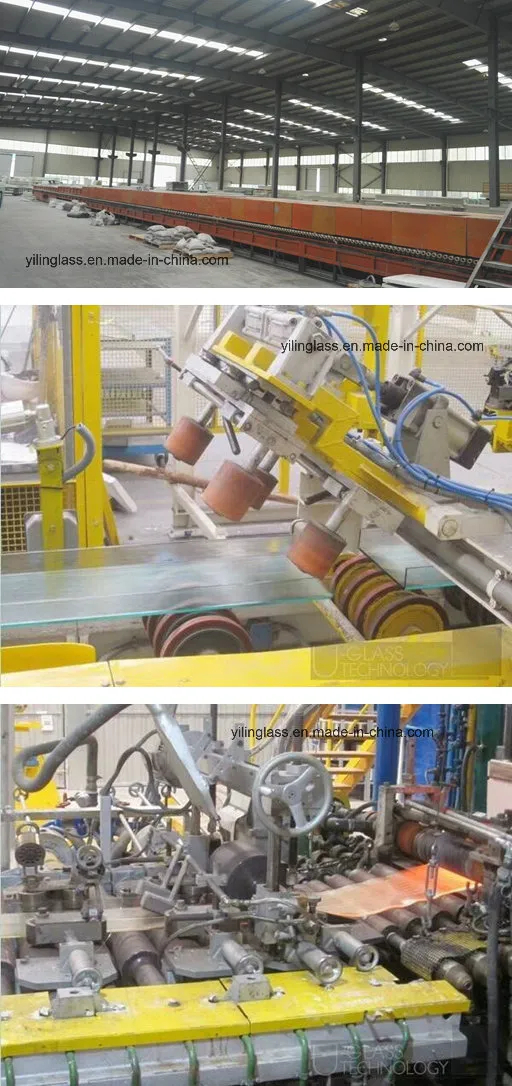

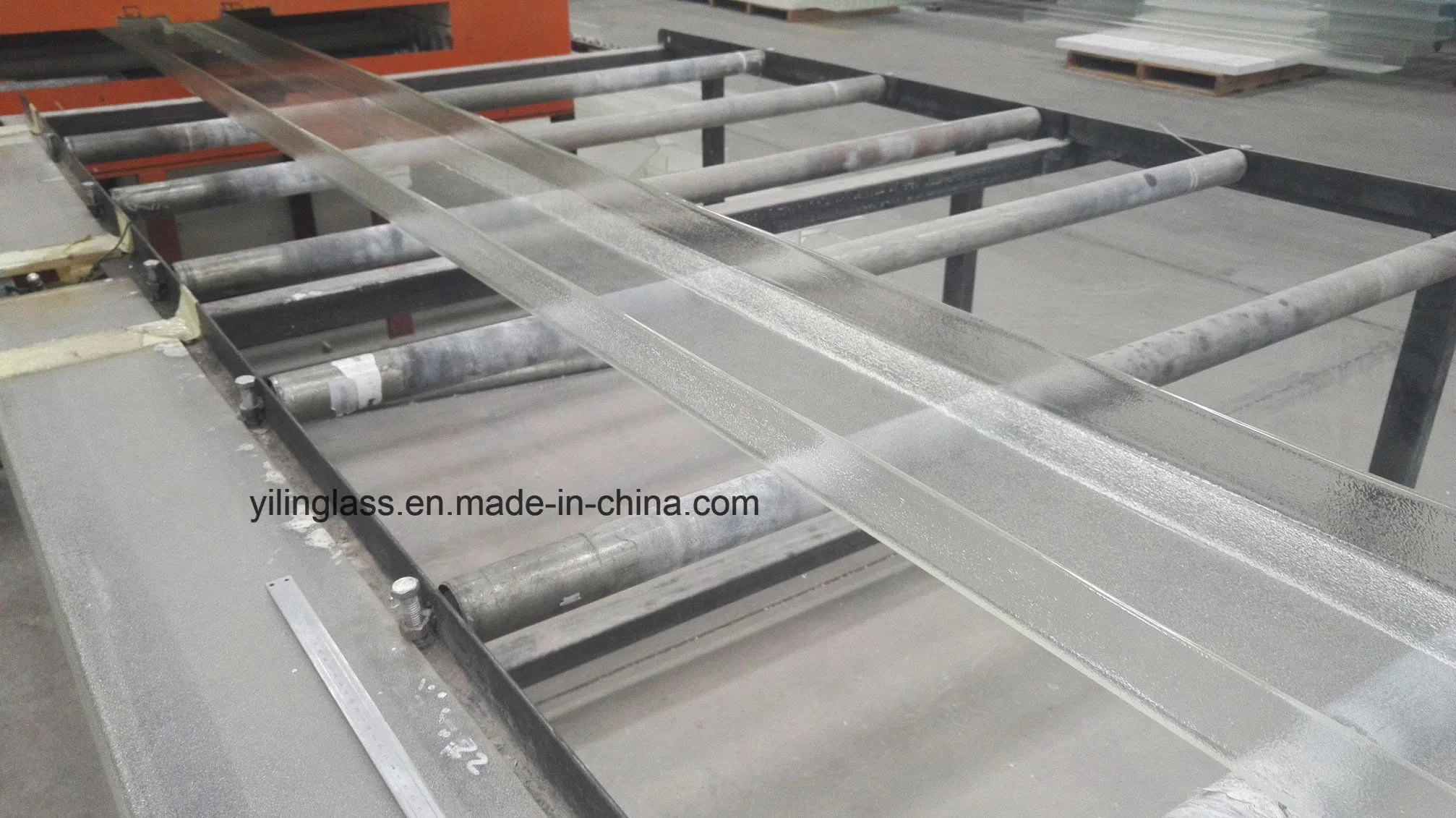

🏭 Factory View

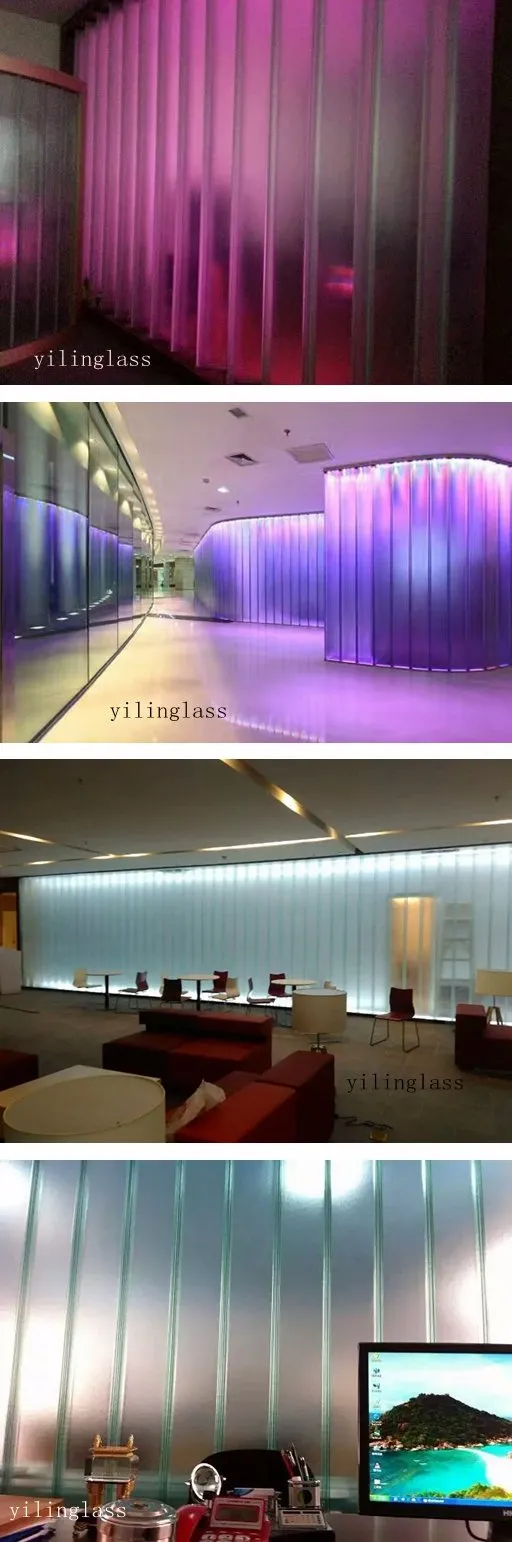

🏢 Project Cases

Frequently Asked Questions

Q1: What are the primary benefits of U-profile glass? A1: U-profile glass offers excellent light transmission, high mechanical strength, thermal insulation, and sound protection, making it ideal for modern architectural designs.

Q2: Can U-channel glass be used for high-rise buildings? A2: Yes, its high mechanical strength allows it to be installed in high-rise structures, often reducing the need for additional vertical and horizontal supports.

Q3: What types of surface textures are available? A3: Common textures include Pear-grain, Ice, Piccolo, and Sandblasted finishes. Custom patterns and colors (RAL/Pantone) are also available.

Q4: Is the U-profile glass safe if it breaks? A4: When tempered, the glass becomes 3-4 times stronger than annealed glass and breaks into small, dull fragments (dicing) to prevent injury.

Q5: What is the maximum length available for tempered U-glass? A5: We utilize specialized tempering ovens that can process channel glass up to 20 feet in length.

Q6: Does U-profile glass support energy efficiency? A6: Yes, it provides effective heat insulation and preservation, contributing to more environment-friendly and economical building operations.
