Laminated Switchable Smart Glass for Window Door Glass Wall

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO. W-DGU -SMART

Type Pdlc Smart Glass

Glass Thickness 5+5+12A+6

Structure Solid / Hollow Glass

Color Clear / Tinted Available

Processing Flat & Curved Panels Available

Power Modules 50W / 100W / 200W / 300W / 500W

Certificate CE Standard

Production Time 5-15 Days

Application Partition, Facade, Skylight, Window, Door

Product Description

Switchable PDLC Building Decorative Glass Laminated Tempered Smart Privacy Glass

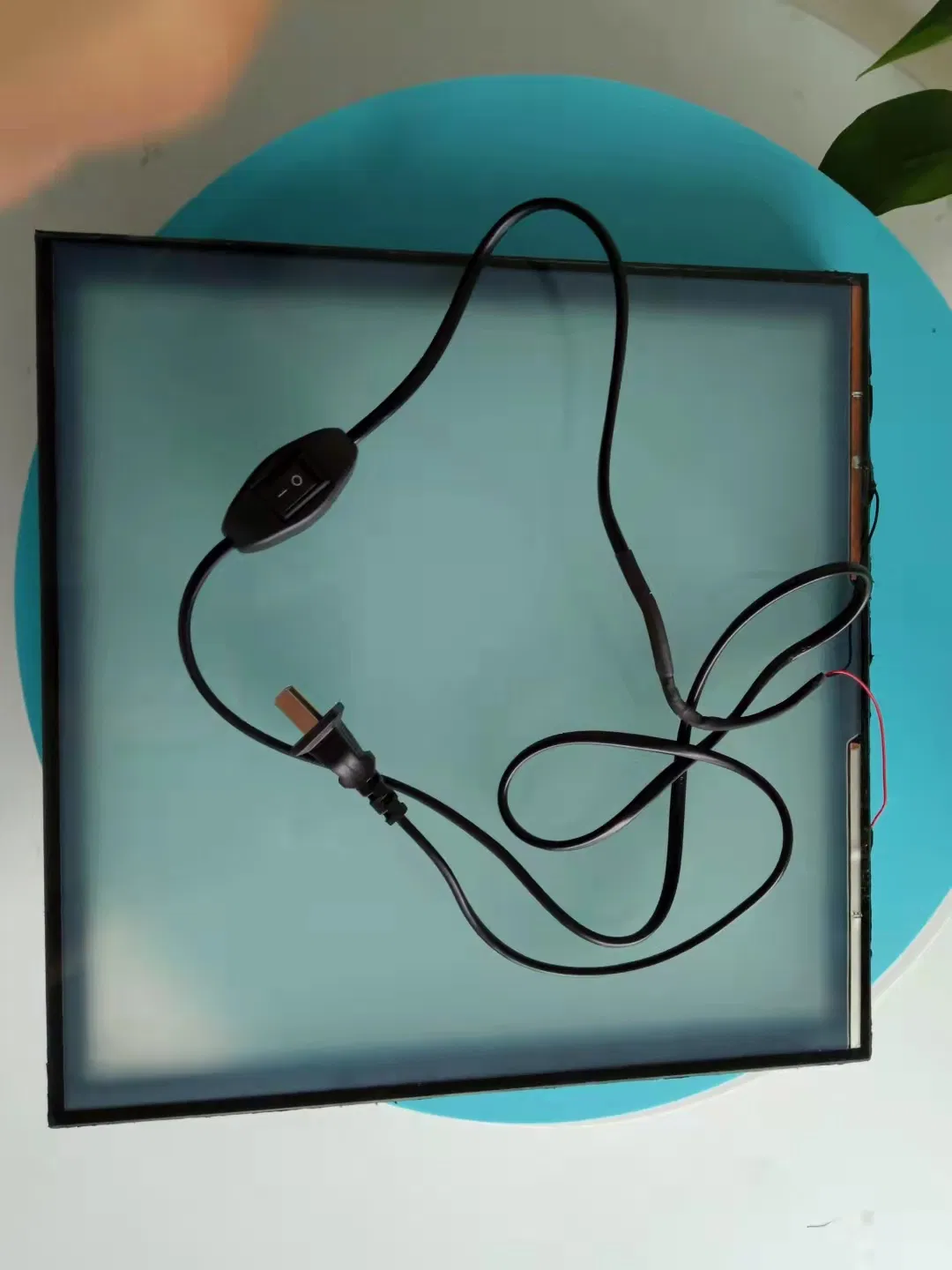

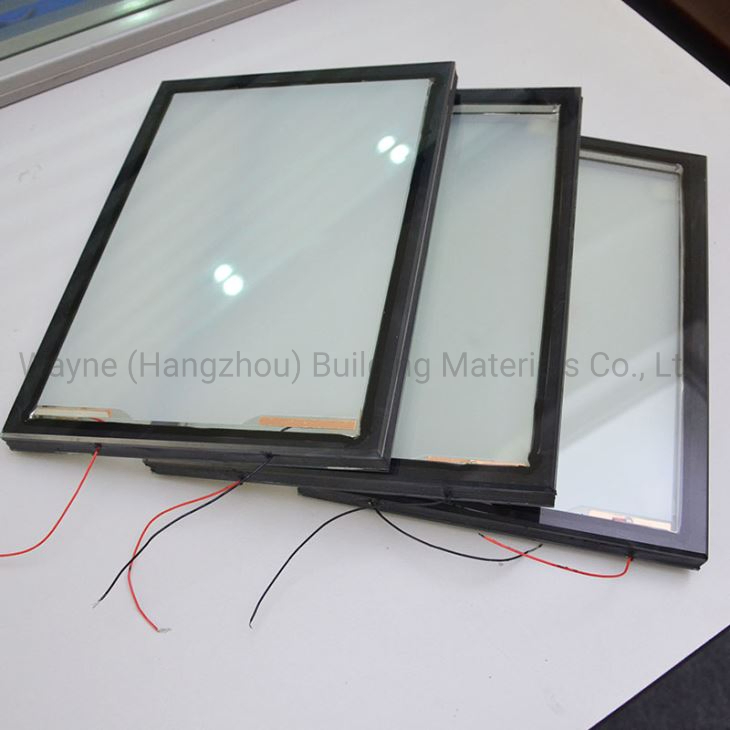

Smart glass is a laminated glass product consisting of a Polymer Dispersed Liquid Crystal (PDLC) film sandwiched between two layers of glass and two layers of conductive interlayers. This PDLC film is what allows you to change the visual appearance of the glass from opaque (translucent) to clear (transparent).

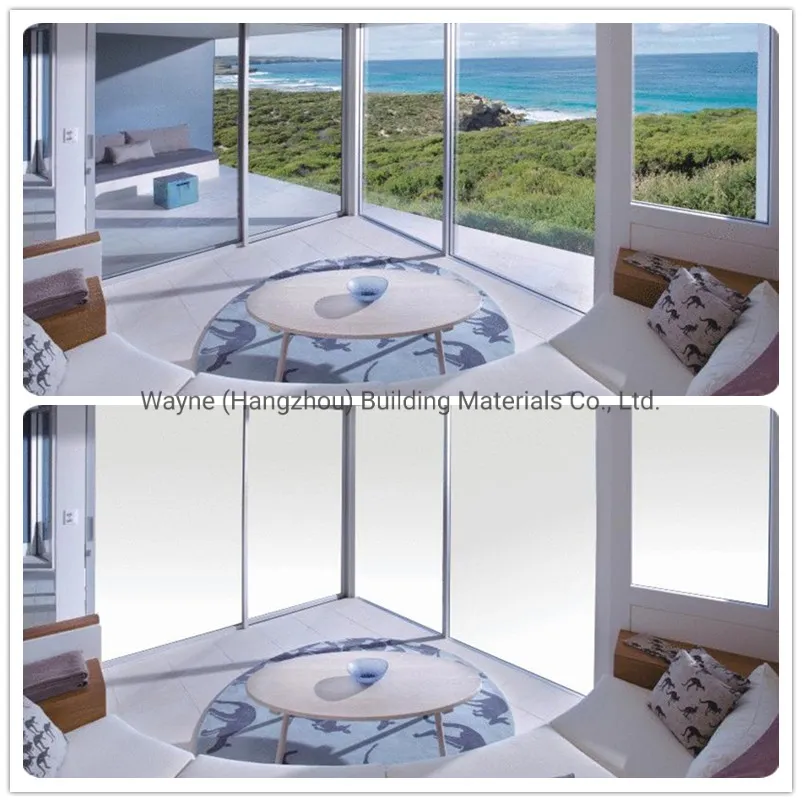

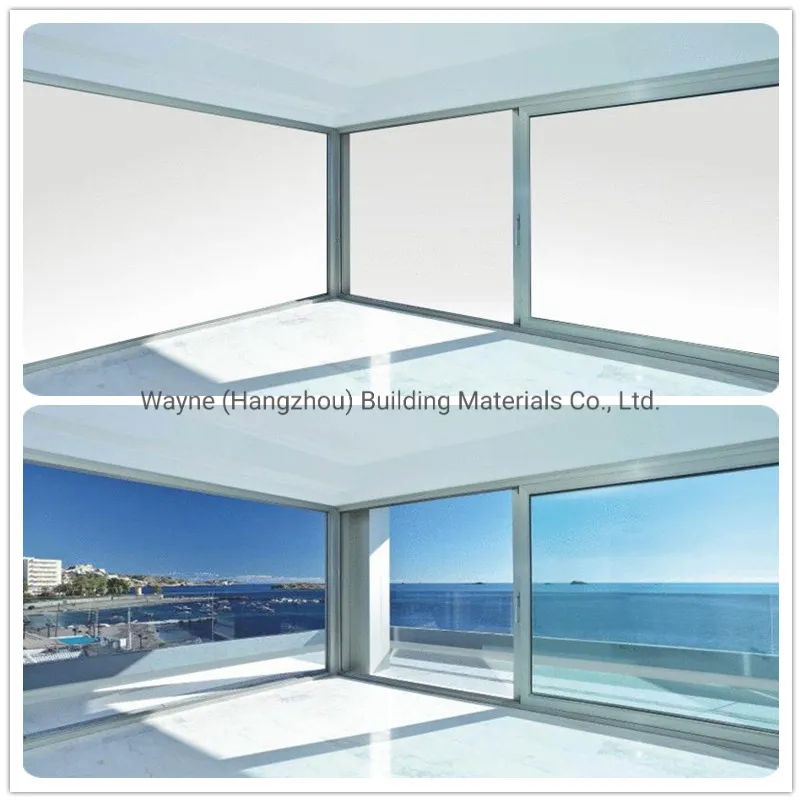

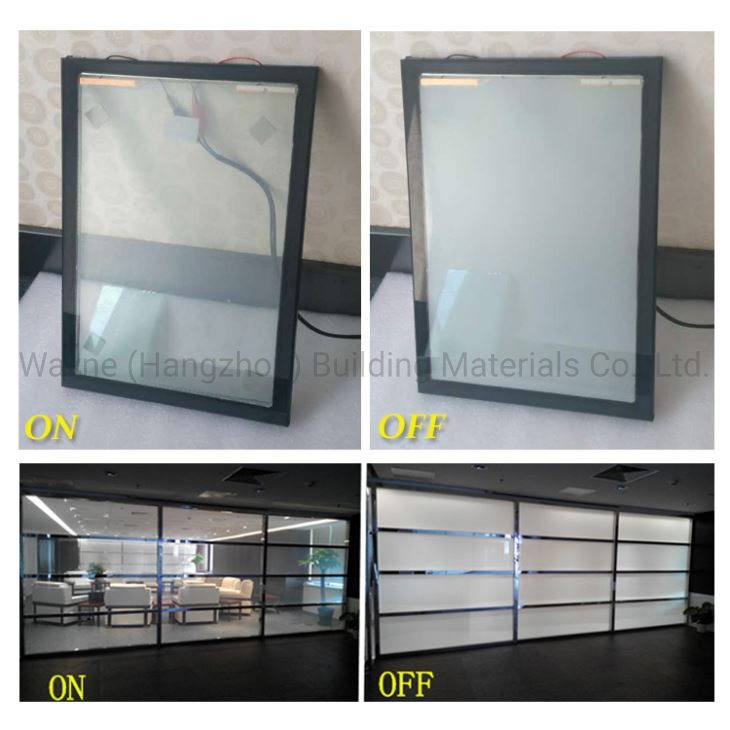

When electricity is applied to the film the liquid crystals line up, changing the glass from opaque to clear. Conversely when electricity is removed, the liquid crystals return to their normal scattered positions changing the glass back to opaque.

Technical Parameters

Item		Unit	Criteria	Standard
Rated Voltage	ON	V	36 / 48 / 60 (AC50Hz)	Multimeter
Power Consumption	ON	w/sq.m	1.5 / 2.5 / 4.0	Instrument
Visible Light Transmittance	ON / OFF	%	>85 / >65	GB/T 2680-94
Haze	ON / OFF	%	<3 / >95	GB/T 2410-2008
Response Time	ON / OFF	ms	<45 / <200	Measuring Inst.
UV Blocking Rate	ON / OFF	%	99%	ISO 9050-2003
Sound Insulation	-	dB	>35dB	GB 18910.1-2002
Switching Times	-	Times	>2 million	GB 18910.5-2008

Our Advantages

◈ NO.1: Max width 2000mm with biggest size in the market.

◈ NO.2: Production via autoclave and oven methods.

◈ NO.3: Both flat and bent smart glass provided per request.

◈ NO.4: Best transparency when powered on, least haze, excellent privacy when off.

◈ NO.5: Professional seaworthy wooden crate packing.

◈ NO.6: Advanced technical support from experienced professional team.

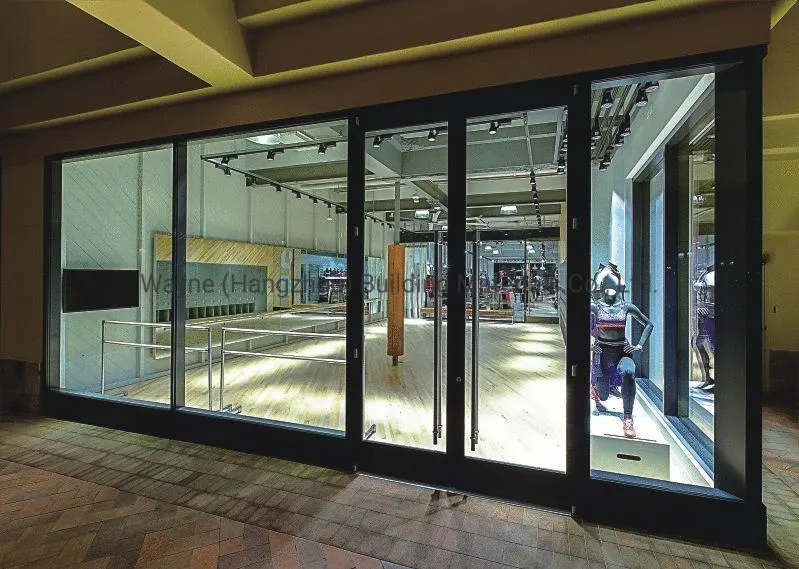

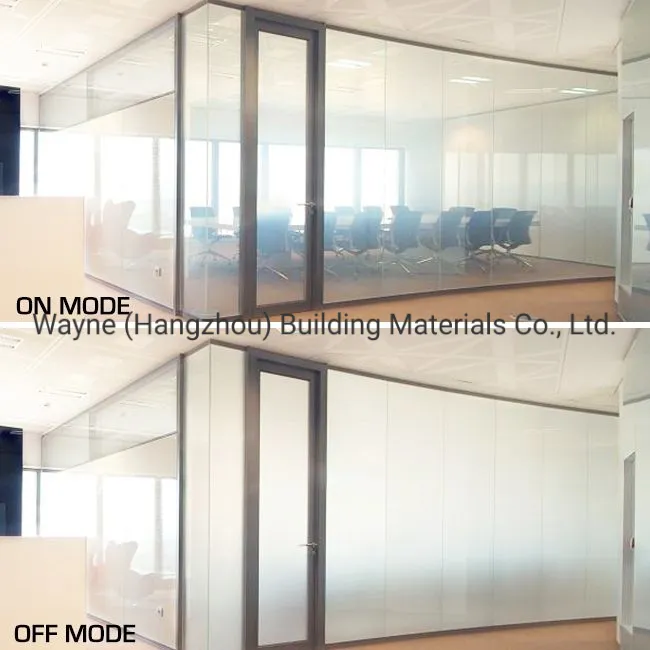

Applications

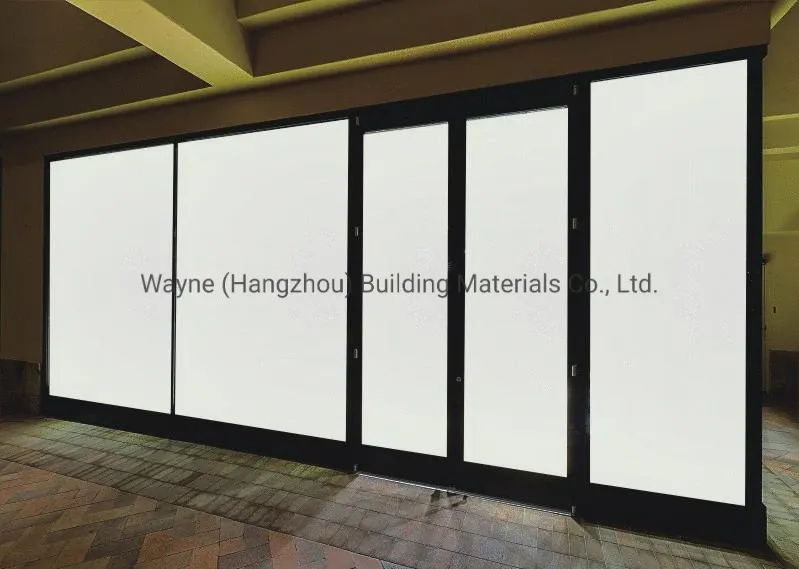

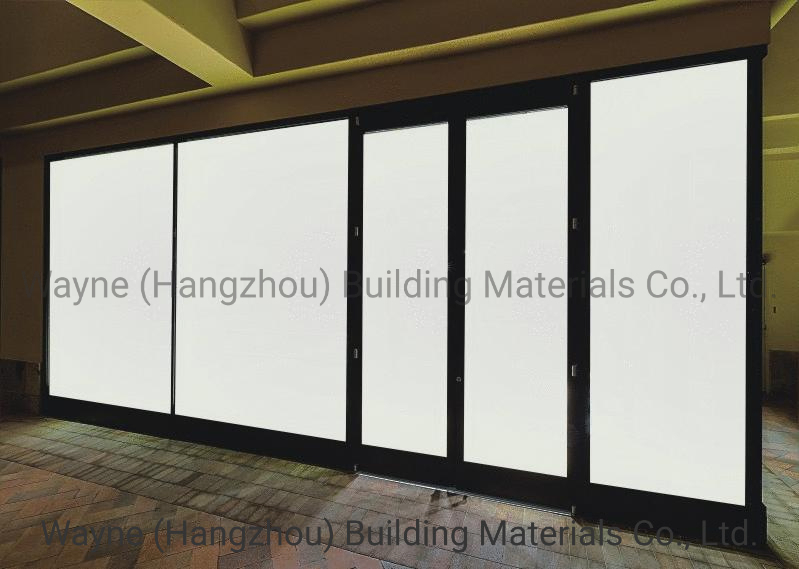

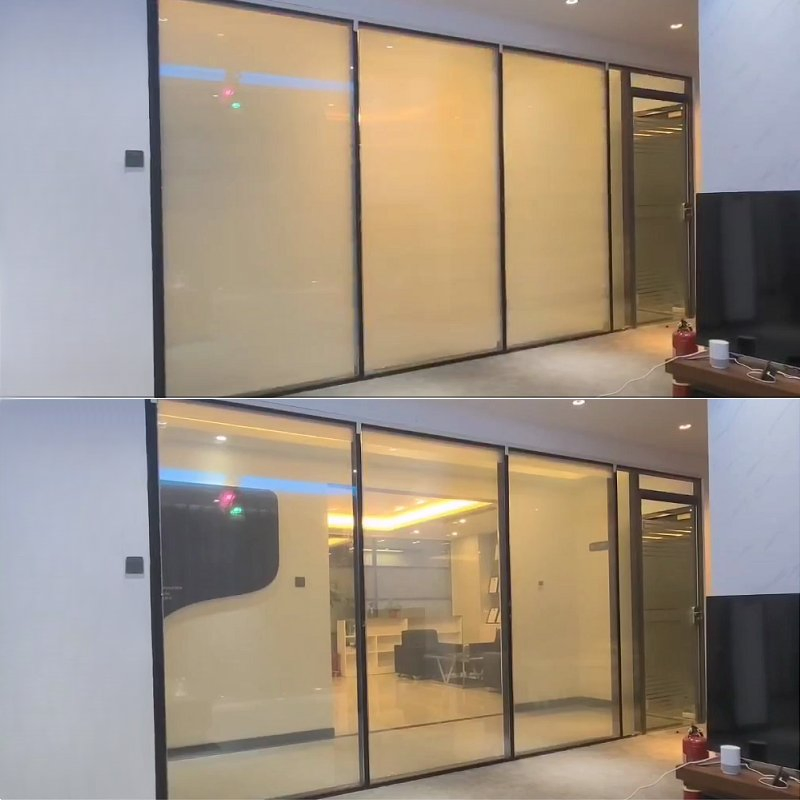

Ideal for Hotel Bathrooms, Office Partitions, Curtain Walls, Conference Rooms, Facades, Restaurants, and Gymnasiums. It also functions as a high-quality projector screen.

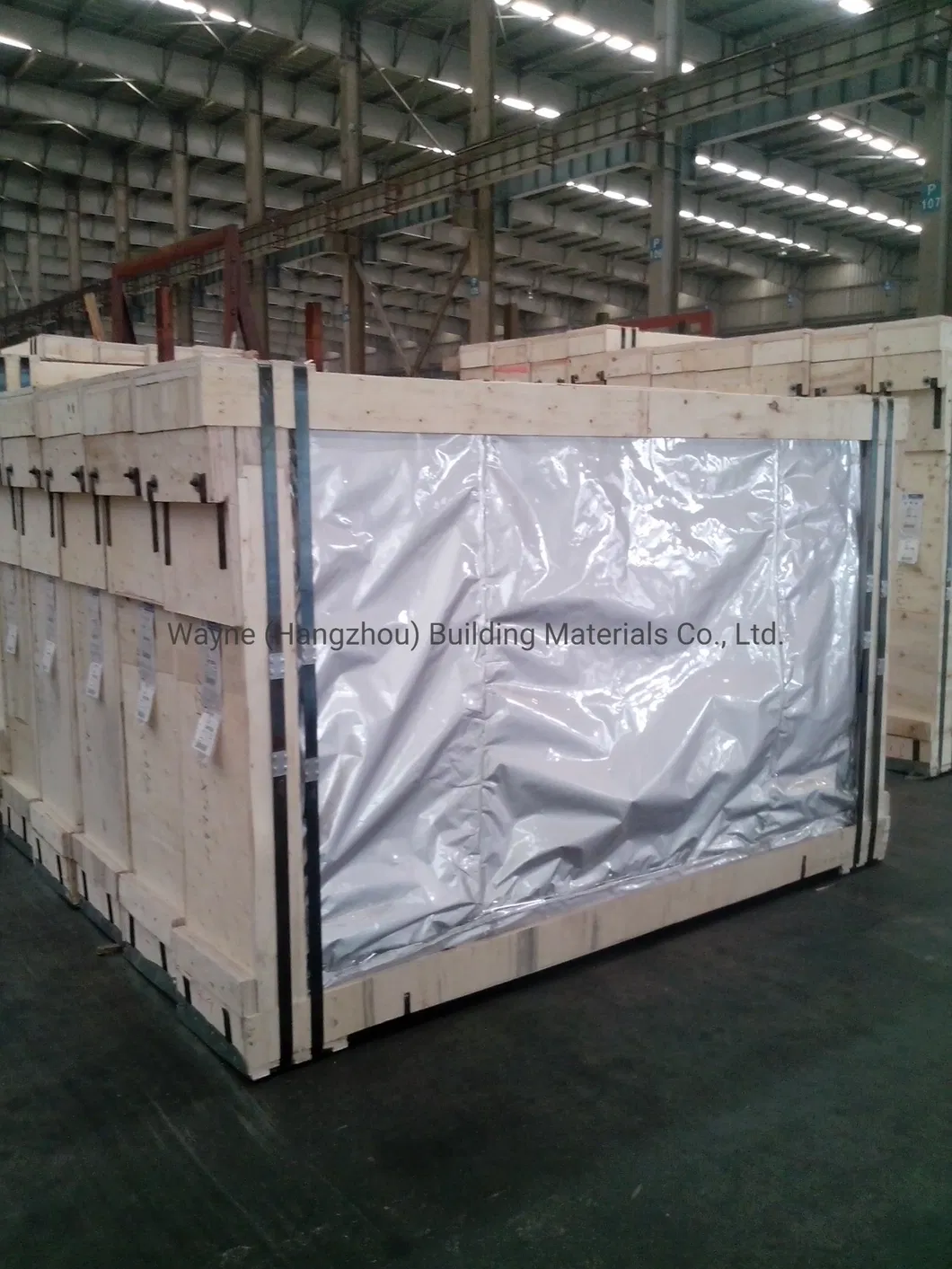

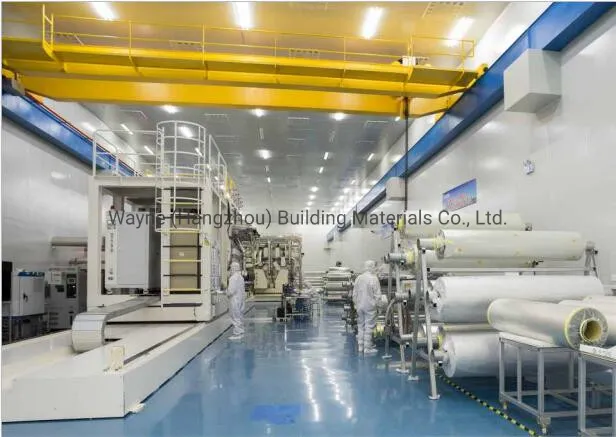

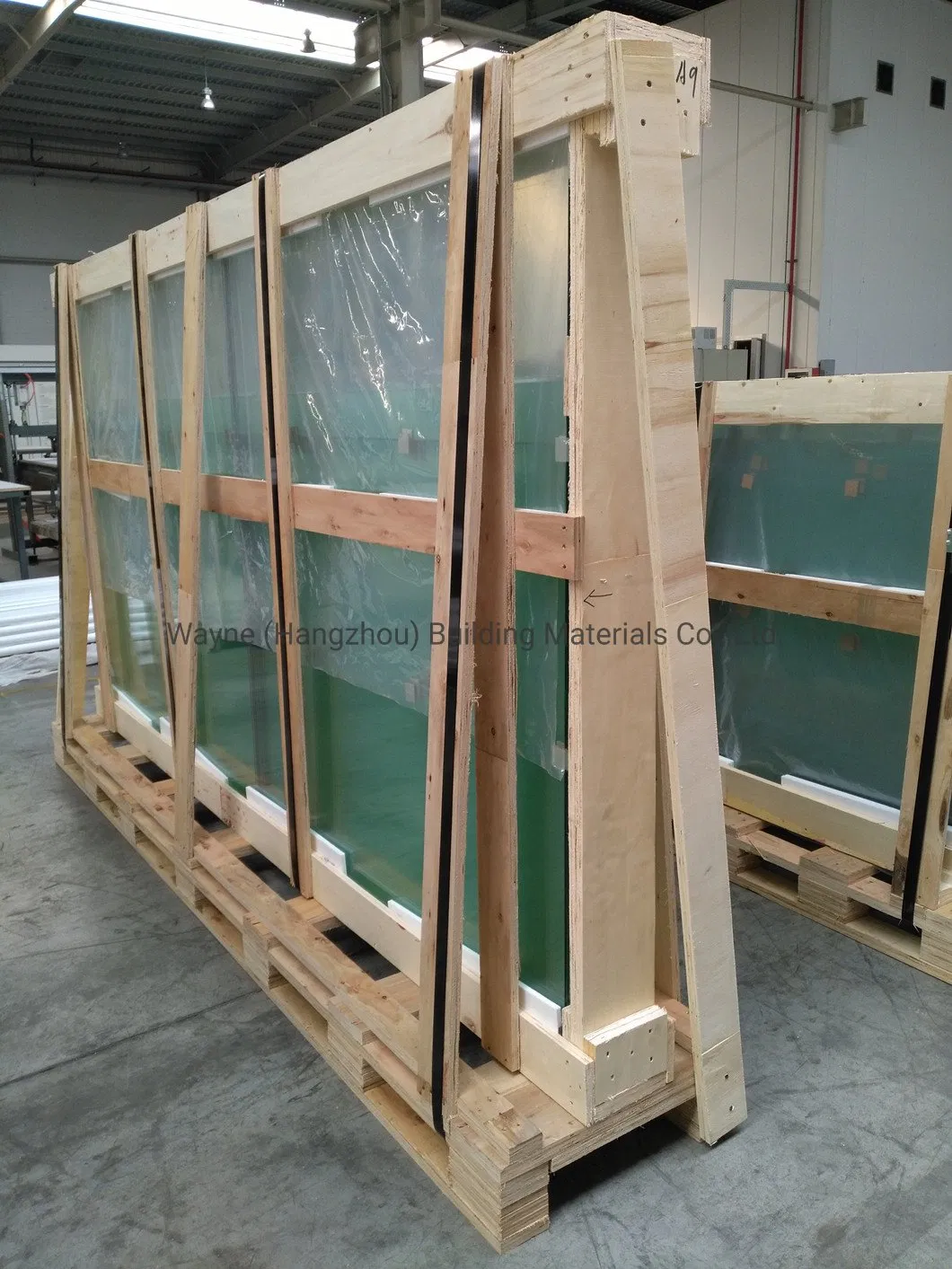

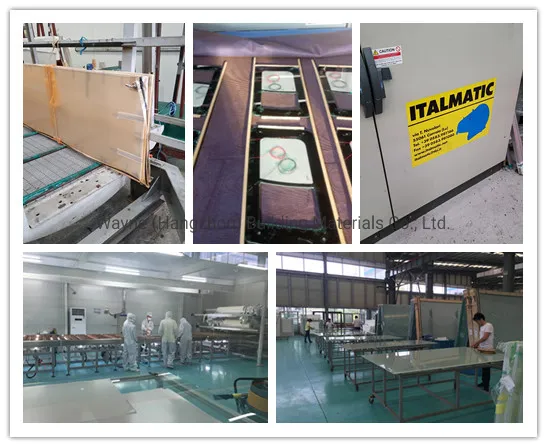

Factory View & Packing

Frequently Asked Questions

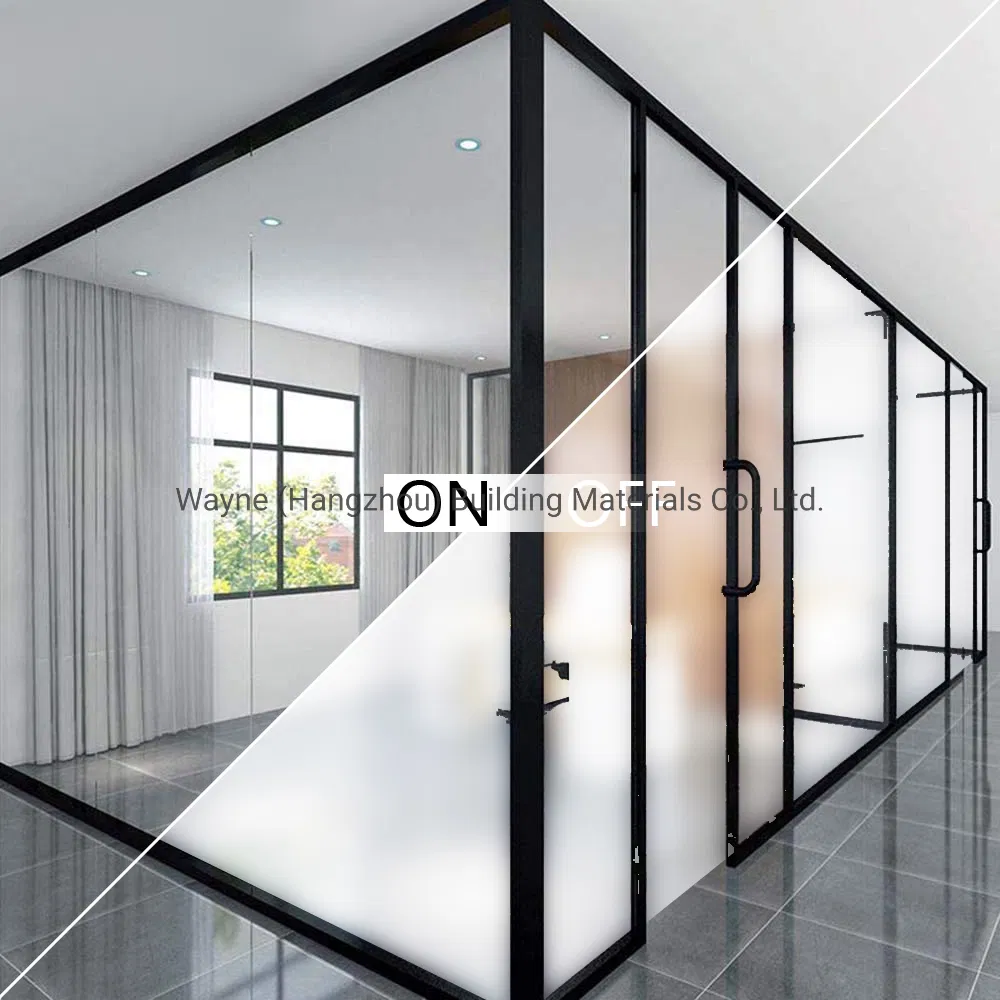

1. How does PDLC Smart Glass work? It uses a Polymer Dispersed Liquid Crystal film. When electrified, liquid crystals align to make the glass transparent; when power is off, they scatter to make the glass opaque for privacy.

2. What is the maximum size available for the panels? We can provide a maximum size of up to 2000mm * 3500mm, which is one of the largest in the market.

3. Does smart glass block ultraviolet (UV) rays? Yes, our smart glass can block up to 98% of UV rays and 90% of infrared radiation, protecting interiors from sun damage.

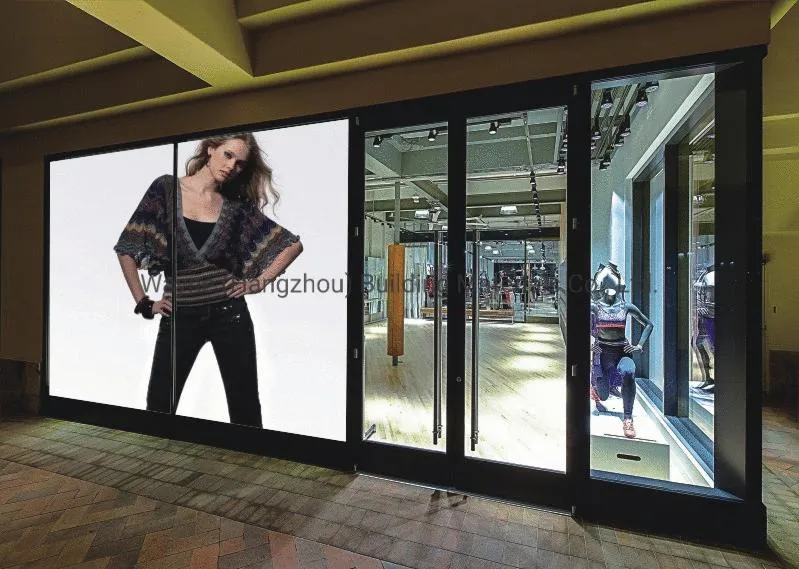

4. Can it be used as a projection screen? Absolutely. In its opaque (OFF) state, the PDLC film acts as a high-quality rear projection screen.

5. What is the expected lifespan of the switching mechanism? The glass is tested for over 2 million switching cycles and has an operational lifespan of over 80,000 hours in the ON state.

6. Is the glass safe for use in public buildings? Yes, it is a type of safety laminated glass. Even if broken, the interlayer holds the fragments together, similar to standard laminated safety glass.
